C8120.41.03

Active

Prysmian Group

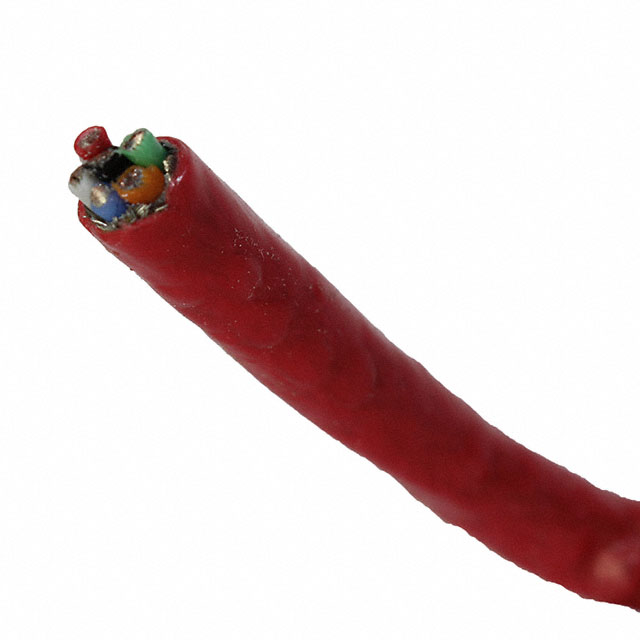

CABLE 6COND 18AWG RED SHLD 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 6COND 18AWG RED SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C8120.41.03

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Flame Retardant
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m, 15.24 m
Length [x]	50 ft, 100 ft, 500 '
Length [x]	30.5 m, 152.4 m
Number of Conductors	6
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Shield Coverage	90 %, 100 %
Shield Material	Tinned, Flexfoil®, Copper
Shield Type	Foil, Braid
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Cable Type	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Shield Type	Jacket (Insulation) Material	Shield Coverage	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Features	Wire Gauge	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Conductor Insulation	Voltage	Conductor Material	Shield Material	Usage
Prysmian Group C8120.41.03	Multi-Conductor	1000 ft	15.24 m 304.8 m	200 °C	-40 °C	50 ft 100 ft 500 '	Braid Foil	Fluorinated Ethylene-Propylene (FEP)	90 % 100 %	30.5 m 152.4 m	19	30 AWG	Flame Retardant	18 AWG	Red	0.356 mm	0.014 in	6	Fluorinated Ethylene-Propylene (FEP)	300 V	Copper Tinned	Copper Flexfoil® Tinned	Communication Control

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable Red 18 AWG Foil, Braid 500.0' (152.4m)
