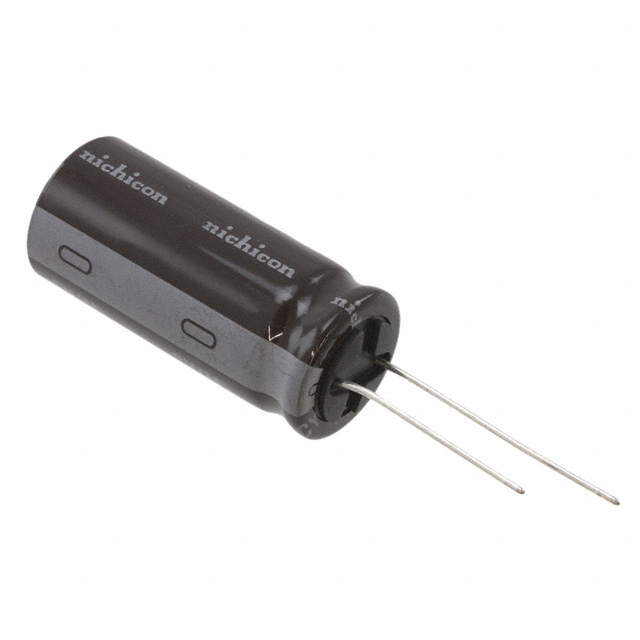

UCY2C391MHD9

Active

NICHICON

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 390UF 160 VOLTS 20% AEC-Q200

Search across all available documentation for this part.

Active

NICHICON

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 390UF 160 VOLTS 20% AEC-Q200

Technical Specifications

Parameters and characteristics for this part

Specification	UCY2C391MHD9

Applications	General Purpose
Capacitance	390 µF
Height - Seated (Max) [Max] [z]	37 mm
Height - Seated (Max) [Max] [z]	1.457 in
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	12000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ratings	AEC-Q200
Ripple Current @ High Frequency	3.02 A
Ripple Current @ Low Frequency	1.51 A
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	160 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Ripple Current @ Low Frequency	Polarization	Capacitance	Tolerance	Applications	Package / Case	Ratings	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
NICHICON UCY2C391MHD9	-40 °C	105 ░C	160 V	1.51 A	Polar	390 µF	20 %	General Purpose	Radial Can	AEC-Q200	12000 Hrs	0.63 in	16 mm	7.5 mm	0.295 in	3.02 A	Through Hole	37 mm	1.457 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 1.55
Newark	Each	100	$ 1.90
		500	$ 1.71
		1000	$ 1.49
		2500	$ 1.33
TME	N/A	300	$ 1.51

General part information

390 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C
