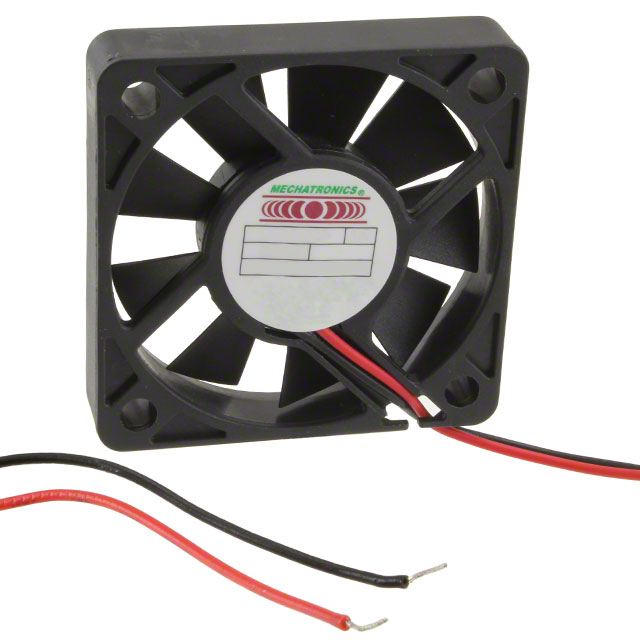

M5010E05C-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 50X10MM 5VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN AXIAL 50X10MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	M5010E05C-RSR

Air Flow	0.277 m³/min
Air Flow	9.9 CFM
Approval Agency	cUL, TUV, UL
Bearing Type	1 Ball/1 Sleeve
Current Rating (Amps)	150 mA
Fan Type	Tubeaxial
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	28 dB
RPM	6000 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Static Pressure	0.14 in H2O
Static Pressure	34.9 Pa
Termination	2 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	6 VDC
Voltage Range [Min]	3 V
Weight	20.87 g
Weight	0.046 lb
Width [y]	10 mm

Part	Width [y]	Size / Dimension [z]	Size / Dimension [x]	Air Flow	Air Flow	Weight	Weight	Noise	Current Rating (Amps)	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Termination	Static Pressure	Static Pressure	RPM	Approval Agency	Fan Type	Voltage - Rated	Material - Blade
Mechatronics Bearing Group M5010M12C-RSR	10 mm	50 mm	50 mm	6.4 CFM	0.179 mł/min	20.87 g	0.046 lb	24 dB	60 mA	Sleeve	7 V	13.8 VDC	2 Wire Leads	17.4 Pa	0.07 in H2O	4000 RPM	cUL TUV UL	Tubeaxial	12 VDC	Polybutylene Terephthalate (PBT)
Mechatronics Bearing Group M5010E05C-RSR	10 mm	50 mm	50 mm	9.9 CFM	0.277 m³/min	20.87 g	0.046 lb	28 dB	150 mA	1 Ball/1 Sleeve	3 V	6 VDC	2 Wire Leads	34.9 Pa	0.14 in H2O	6000 RPM	cUL TUV UL	Tubeaxial	5 V	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 50mm L x 50mm H 1 Ball/1 Sleeve 9.9 CFM (0.277m³/min) 2 Wire Leads
