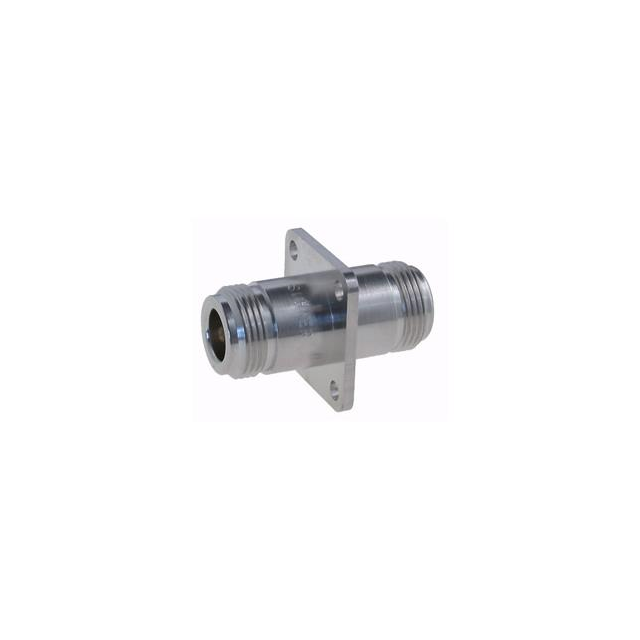

37_N-50-0-1/133_NE

Active

Huber+Suhner, Inc.

CONN TYPE N ADAPTER 0HZ TO 11GHZ 50OHM ST FLANGE MOUNT F/F GOLD OVER NICKEL SINGLE

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

CONN TYPE N ADAPTER 0HZ TO 11GHZ 50OHM ST FLANGE MOUNT F/F GOLD OVER NICKEL SINGLE

Technical Specifications

Parameters and characteristics for this part

Specification	37_N-50-0-1/133_NE

Adapter Series	N to N
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Center Gender	Center Contact Plating	Body Material	Dielectric Material	Mating Cycles	Style	Impedance	Frequency - Max [Max]	Convert To (Adapter End)	Mounting Feature	Adapter Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Convert From (Adapter End)	Conversion Type	Adapter Series	Center Contact Material
Huber+Suhner, Inc. 37_N-50-0-1/133_NE	Female to Female	Gold	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	Straight	50 Ohms	11 GHz	Female Socket N Jack	Flange	Jack to Jack	-65 ░C	165 °C	White Bronze	Female Socket N Jack	Same Series	N to N	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
