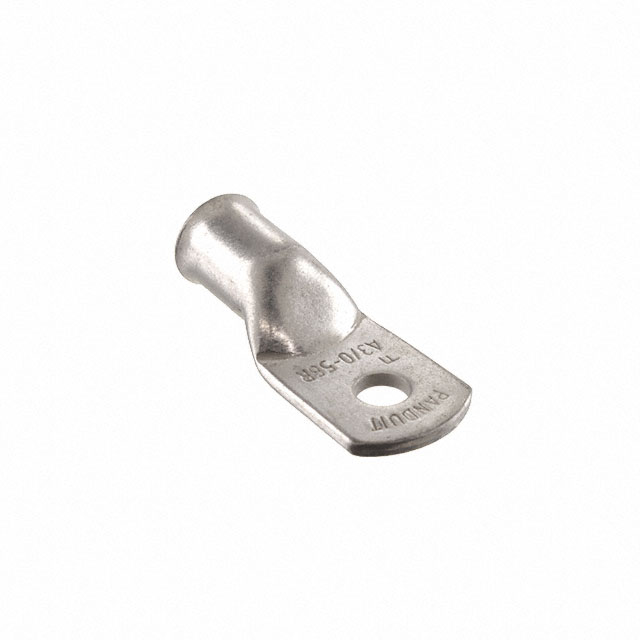

A3/0-56R-C

Active

Panduit Corp

TERMINALS BATTERY CABLE LUG, 3/0 AWG, 5/16" STUD

Search across all available documentation for this part.

Active

Panduit Corp

TERMINALS BATTERY CABLE LUG, 3/0 AWG, 5/16" STUD

Technical Specifications

Parameters and characteristics for this part

Specification	A3/0-56R-C

Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Non-Insulated
Length - Overall	57.66 mm
Length - Overall	2.27 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.3125 Stud
Terminal Type	Circular Tubular (Battery Lugs)
Termination	Crimp
Thickness	2.54 mm
Thickness	0.1 in
Width - Outer Edges [y]	23.11 mm
Width - Outer Edges [y]	0.91 "

Terminals Battery Cable Lug, 3/0 AWG, 1/2" Stud

Part	Stud/Tab Size	Contact Material	Termination	Mounting Type	Insulation	Terminal Type	Contact Finish	Thickness	Thickness	Length - Overall	Length - Overall	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size
Panduit Corp A3/0-56R-C	0.3125 Stud	Copper	Crimp	Free Hanging (In-Line)	Non-Insulated	Circular Tubular (Battery Lugs)	Electro-Tin	2.54 mm	0.1 in	57.66 mm	2.27 in	23.11 mm	0.91 "
Panduit Corp A3/0-38R-C		Copper	Crimp	Free Hanging (In-Line)	Non-Insulated	Circular Tubular (Battery Lugs)	Electro-Tin	2.54 mm	0.1 in	57.66 mm	2.27 in	23.11 mm	0.91 "	3/8 Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminals Battery Cable Lug, 3/0 AWG, 1/2" Stud
