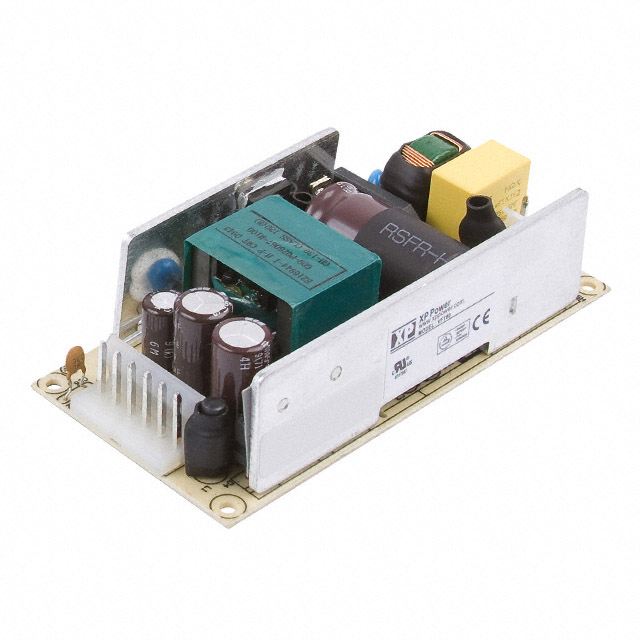

VFT80US12

Obsolete

XP POWER

AC-DC POWER MODULES ROHS

Search across all available documentation for this part.

Obsolete

XP POWER

AC-DC POWER MODULES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	VFT80US12

Applications	ITE (Commercial)
Current - Output 1	6.67 A
Efficiency	87 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	80 W
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Mounting Type	Features	Voltage - Isolation	Minimum Load Required	Current - Output 1	Voltage - Output 1	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Type	Efficiency	Applications	Standard Number
XP POWER VFT80US12	Chassis Mount	Adjustable Output Universal Input	3000 V		6.67 A	12 V	1	-10 °C	70 °C	80 W	Open Frame	87 %	ITE (Commercial)	62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
