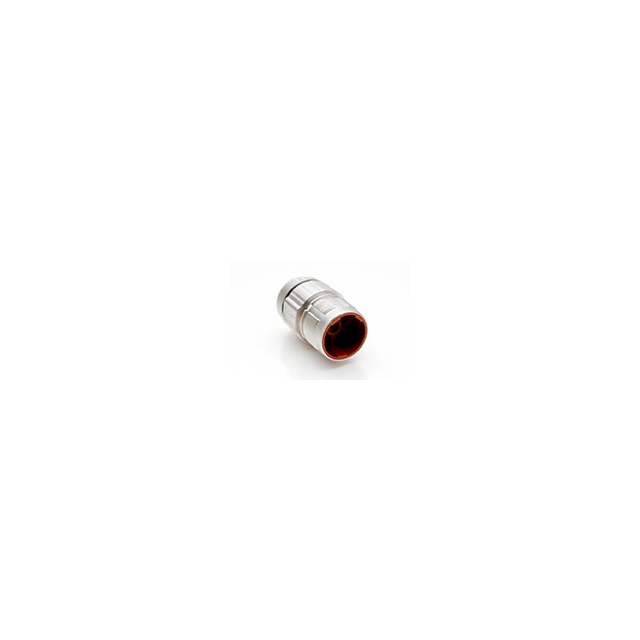

MB2JJN0600

Active

Amphenol Sine Systems Corp

6 POSITION RECEPTACLE EXTENSION,

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

6 POSITION RECEPTACLE EXTENSION,

Technical Specifications

Parameters and characteristics for this part

Specification	MB2JJN0600

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	2 mm
Contact Type	Crimp
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-6
Shielding	Shielded
Type	For Male Pins

Part	Shell Size - Insert	Shell Material	Shell Finish	Ingress Protection	Features	Insert Material	Orientation	Number of Positions	Connector Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Housing Color	Contact Type	Note	Contact Shape	Contact Size	Mounting Type	Shielding
Amphenol Sine Systems Corp MB2JJN0600	M23-6	Zinc Die Cast	Nickel	IP67 - Dust Tight Waterproof	Coupling Nut	Polyamide (PA66) Nylon 6/6	Keyed	6	Receptacle Housing	For Male Pins	-20 C	130 °C	UL94 V-0	Silver	Crimp	Contacts Not Included	Circular	2 mm	Free Hanging (In-Line)	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	200	$ 8.41

General part information

6 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Coupling Nut
