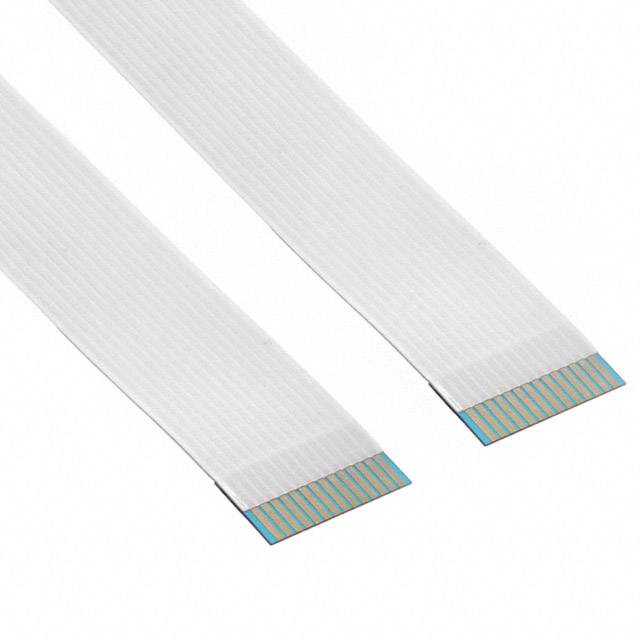

0210390307

Obsolete

Molex

CABLE FFC/FPC 14POS 1MM 10"

Search across all available documentation for this part.

Obsolete

Molex

CABLE FFC/FPC 14POS 1MM 10"

Technical Specifications

Parameters and characteristics for this part

Specification	0210390307

Cable Type	FPC, FFC
Length	254 mm
Length - Exposed Ends [x]	4 mm
Length - Exposed Ends [x]	0.157 in
Length [x]	10 in
Number of Conductors	14
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides

...

Part	Length	Length	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Termination Style	Cable Type	Number of Conductors	Length [x]
Molex 0210391040	5 in	127 mm	4 mm	0.157 in	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	FFC FPC	33
Molex 0210390425	3 in	76.2 mm	4 mm	0.157 in	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	FFC FPC	26
Molex 0210390452	5 in	127 mm	4 mm	0.157 in	0.039 in	1 mm	Top on One Side Bottom on Other Backers on Both Sides	FFC FPC	28
Molex 0210390799	6 in	152.4 mm	4 mm	0.157 in	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	FFC FPC	11
Molex 0210390874		304.8 mm	4 mm	0.157 in	0.039 in	1 mm	Top on One Side Bottom on Other Backers on Both Sides	FFC FPC	17	12 in
Molex 0210390460	9 "	228.6 mm	4 mm	0.157 in	0.039 in	1 mm	Top on One Side Bottom on Other Backers on Both Sides	FFC FPC	28
Molex 0210390307		254 mm	4 mm	0.157 in	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	FFC FPC	14	10 in
Molex 0210390457	8 in	203.2 mm	4 mm	0.157 in	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	FFC FPC	28
Molex 0210390772	4 in	101.6 mm	4 mm	0.157 in	0.039 in	1 mm	Top on One Side Bottom on Other Backers on Both Sides	FFC FPC	9
Molex 0210390288		304.8 mm	4 mm	0.157 in	0.039 in	1 mm	Top on One Side Bottom on Other Backers on Both Sides	FFC FPC	12	12 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

14 Position FFC, FPC Cable 0.039" (1.00mm) 10.0" (254.0mm)

Technical documentation and resources

No documents available
