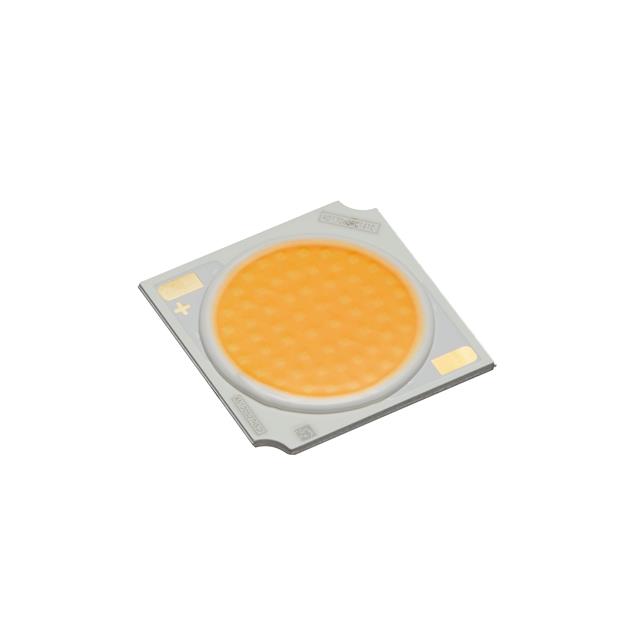

CLU03Q-1206E1-303L7X4

Active

Citizen Finedevice Co Ltd

LED COB CLU03Q WM WHT SQ 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLU03Q-1206E1-303L7X4

Active

Citizen Finedevice Co Ltd

LED COB CLU03Q WM WHT SQ 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLU03Q-1206E1-303L7X4

CCT (K)	3000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	70
Current - Max [Max]	1.38 A
Current - Test	540 mA
Features	With Connector
Height [z]	1.4 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	14.5 mm
Lumens/Watt @ Current - Test	174 lm/W
Luminous Flux @ Current/Temperature	3431 lm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	33.8 V

CLU03Q Series

Part	Height [z]	Lens Type	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Color	Current - Max [Max]	Luminous Flux @ Current/Temperature	CCT (K)	CRI (Color Rendering Index)	Current - Test	Type	Features	Light Emitting Surface (LES) [diameter]	Temperature - Test	Configuration	Lumens/Watt @ Current - Test	CCT (K)
Citizen Finedevice Co Ltd CLU03Q-1208E1-272H6X3	1.4 mm	Flat	33.8 V	19 mm	19 mm	Warm White	1.84 A	3241 lm	2700 K	90	720 mA	Chip On Board (COB)	With Connector	14.5 mm	85 °C	Square
Citizen Finedevice Co Ltd CLU03Q-1205E1-302H7X5	1.4 mm	Flat	33.8 V	19 mm	19 mm	Warm White	1.15 A	1883 lm	3000 K	97	450 mA	Chip On Board (COB)	With Connector	14.5 mm	85 °C	Square
Citizen Finedevice Co Ltd CLU03Q-1205E1-302M2X2	1.4 mm	Flat	33.8 V	19 mm	19 mm	Warm White	1.15 A	2455 lm	3000 K	80	450 mA	Chip On Board (COB)	With Connector	14.5 mm	85 °C	Square	161 lm/W
Citizen Finedevice Co Ltd CLU03Q-1208E1-272H7X5	1.4 mm	Flat	33.8 V	19 mm	19 mm	Warm White	1.84 A	2994 lm	2700 K	97	720 mA	Chip On Board (COB)	With Connector	14.5 mm	85 °C	Square	114 lm/W
Citizen Finedevice Co Ltd CLU03Q-1205E1-652M2X2	1.4 mm	Flat	33.8 V	19 mm	19 mm	Cool White	1.15 A	2503 lm	6500 K	80	450 mA	Chip On Board (COB)	With Connector	14.5 mm	85 °C	Square
Citizen Finedevice Co Ltd CLU03Q-1206E1-352H5X3	1.4 mm	Flat	33.8 V	19 mm	19 mm	Warm White	1.38 A	2819 lm	3500 K	90	540 mA	Chip On Board (COB)	With Connector	14.5 mm	85 °C	Square	143 lm/W
Citizen Finedevice Co Ltd CLU03Q-1206E1-303L7X4	1.4 mm	Flat	33.8 V	19 mm	19 mm	Warm White	1.38 A	3431 lm	3000 K	70	540 mA	Chip On Board (COB)	With Connector	14.5 mm	85 °C	Square	174 lm/W
Citizen Finedevice Co Ltd CLU03Q-1205E1-272H7X5	1.4 mm	Flat	33.8 V	19 mm	19 mm	Warm White	1.15 A	1789 lm	2700 K	97	450 mA	Chip On Board (COB)	With Connector	14.5 mm	85 °C	Square	118 lm/W
Citizen Finedevice Co Ltd CLU03Q-1206E1-572M2X2	1.4 mm	Flat	33.8 V	19 mm	19 mm	Cool White	1.38 A	3230 lm	5700 K	80	540 mA	Chip On Board (COB)	With Connector	14.5 mm	85 °C	Square	164 lm/W	2-Step MacAdam Ellipse

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	48	$ 6.62

Description

General part information

CLU03Q Series

LED Lighting COBs Engines Modules Chip On Board (COB) CLU03Q White, Warm Square
