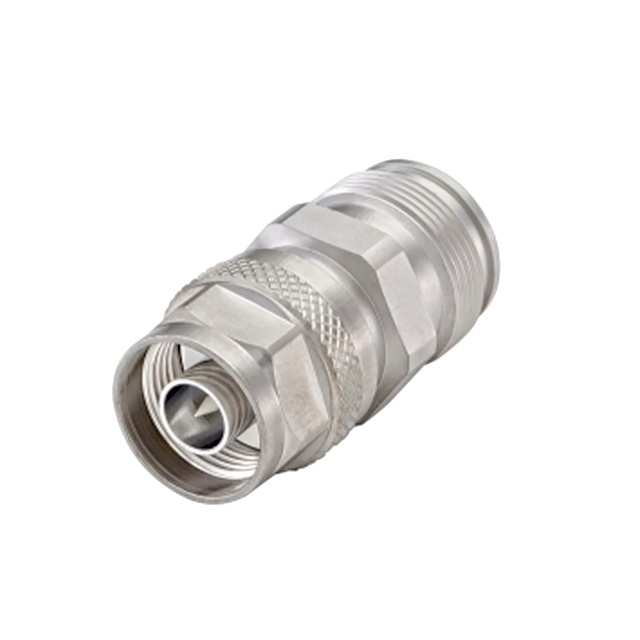

53S164-K00N1

Active

Rosenberger

CONN ADAPT N PLUG TO 4.3/10 JACK

Search across all available documentation for this part.

Active

Rosenberger

CONN ADAPT N PLUG TO 4.3/10 JACK

Technical Specifications

Parameters and characteristics for this part

Specification	53S164-K00N1

Adapter Series	4.3/10, N
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	4.3/10 Jack, Female Socket
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Body Finish	Body Material	Conversion Type	Adapter Type	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Convert From (Adapter End)	Mounting Type	Center Contact Material	Dielectric Material	Style	Frequency - Max [Max]	Convert To (Adapter End)	Adapter Series
Rosenberger 53S164-K00N1	White Bronze	Brass	Between Series	Plug to Jack	Silver	90 °C	-55 °C	50 Ohms	4.3/10 Jack Female Socket	Free Hanging (In-Line)	Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Straight	12 GHz	Male Pin N Plug	4.3/10 N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 4.3/10 Jack, Female Socket To N Plug, Male Pin 50 Ohms
