DAH1SSAAX01A

Active

Amphenol CONEC

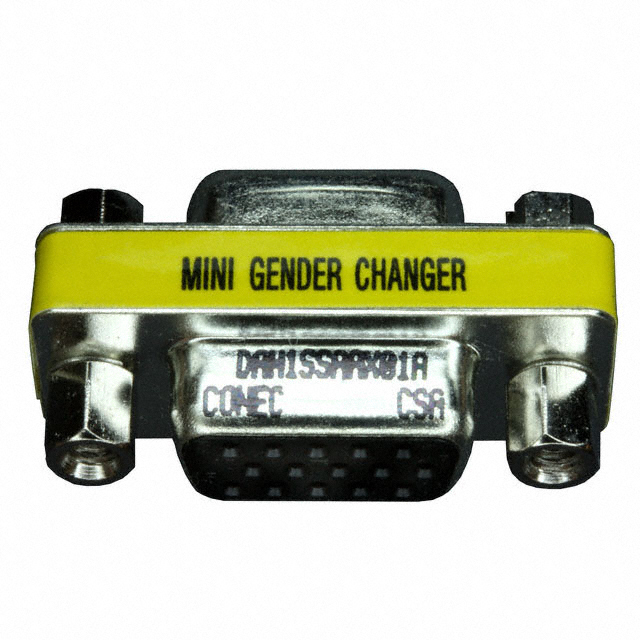

DSUB GENDER CHANGER HD15F HD15F

Search across all available documentation for this part.

Active

Amphenol CONEC

DSUB GENDER CHANGER HD15F HD15F

Technical Specifications

Parameters and characteristics for this part

Specification	DAH1SSAAX01A

Connector Style	Gender Changer
Contact Finish	Gold
Convert From (Adapter End)	Female, D-Sub, 15 HD
Convert To (Adapter End)	Female, 15 HD, D-Sub
Current Rating (Amps)	3 A
Housing Color	Yellow
Includes	1 Connector, 2 Jack Screws
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C

Part	Connector Style	Contact Finish	Current Rating (Amps)	Convert From (Adapter End)	Number of Rows	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Mounting Type	Convert To (Adapter End)	Includes
Amphenol CONEC DAH1SSAAX01A	Gender Changer	Gold	3 A	15 HD D-Sub Female	3	UL94 V-0	105 ░C	-55 °C	Yellow	Free Hanging (In-Line)	15 HD D-Sub Female	1 Connector 2 Jack Screws

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Connector D-Sub, 15 HD, Female To D-Sub, 15 HD, Female Free Hanging (In-Line)

Technical documentation and resources
