FKA1-17251QBHT31
ActiveQualtek

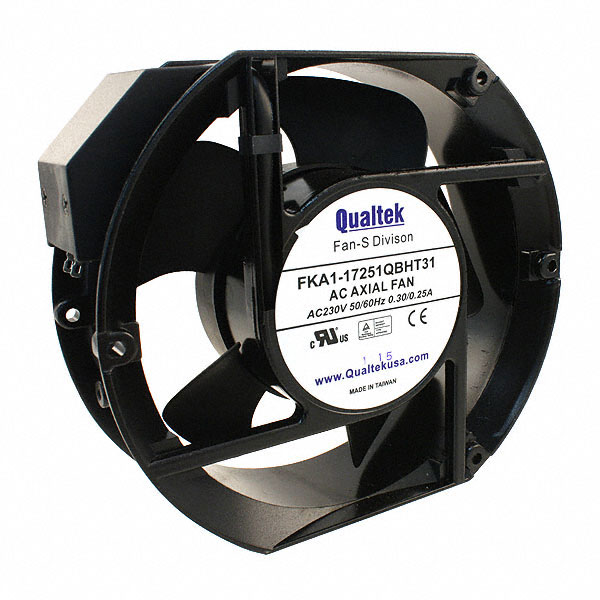

FAN AXIAL 172X50.8MM 230VAC TERM
Deep-Dive with AI
Search across all available documentation for this part.
FKA1-17251QBHT31
ActiveQualtek
FAN AXIAL 172X50.8MM 230VAC TERM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FKA1-17251QBHT31 |
|---|---|
| Air Flow | 189 CFM |
| Air Flow | 5.29 mł/min |
| Approval Agency | cURus, CE, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.23 A |
| Fan Type | Tubeaxial |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 57.7 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 50.6 W |
| RPM | 2700 RPM |
| Size / Dimension | Rectangular/Rounded |
| Size / Dimension [x] | 172 mm |
| Size / Dimension [z] | 150 mm |
| Static Pressure | 0.408 in H2O |
| Static Pressure | 101.6 Pa |
| Termination | 2 Terminals |
| Voltage - Rated | 230 VAC |
| Weight | 1 kg |
| Weight | 2.3 lbs |
| Width [y] | 2 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 40.64 | |
| 10 | $ 37.12 | |||
| 25 | $ 35.71 | |||
| 50 | $ 33.36 | |||
| 100 | $ 30.78 | |||
| 250 | $ 30.31 | |||
Description
General part information
FKA1-17251 Series
Fan Tubeaxial 230VAC Rectangular/Rounded - 172mm L x 150mm H Ball 189.0 CFM (5.29mł/min) 2 Terminals
