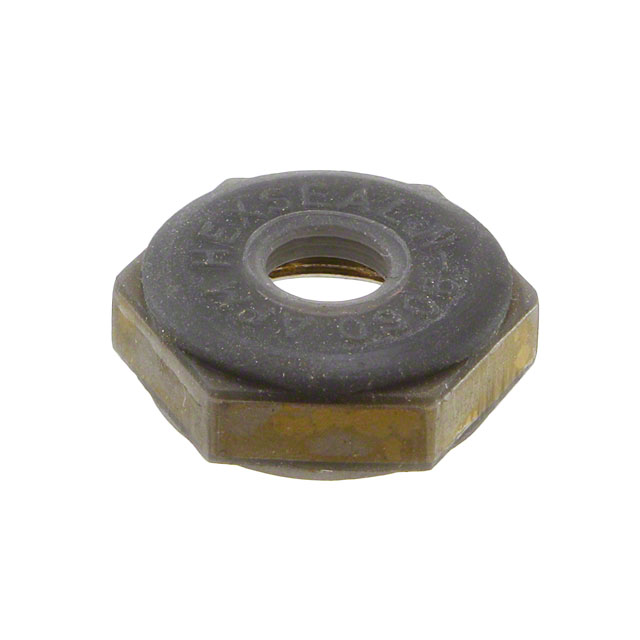

N9060X1/4 2
ActiveAPM HEXSEAL
ROTARY SHAFT SEAL GRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N9060X1/4 2
ActiveAPM HEXSEAL
ROTARY SHAFT SEAL GRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N9060X1/4 2 |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Diameter [diameter] | 0.25 in |
| Color | Gray |
| For Use With/Related Products | Multiple Series |
| Ingress Protection | IP66/IP68 |
| Material | Silicone Rubber |
| Mounting Feature | Front of Panel |
| Operating Temperature [Max] | 204 °C |
| Operating Temperature [Min] | -70 °C |
| Size / Dimension [z] | 0.219 in |
| Size / Dimension [z] | 5.56 mm |
| Thread Size | 15/32-32 NS-2B |
| Type | Rotary Shaft Seal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.88 | |
| 10 | $ 2.80 | |||
| 100 | $ 2.69 | |||
| 1000 | $ 2.20 | |||
Description
General part information
N9060X1 Series
ROTARY SHAFT SEAL GRAY
