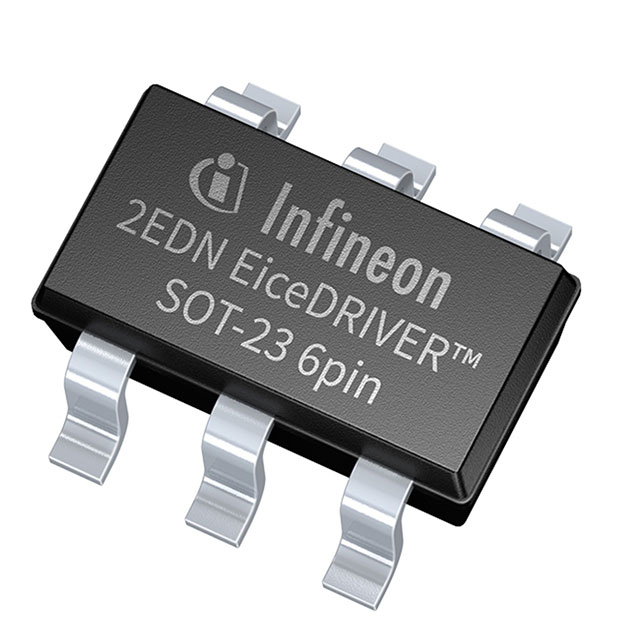

2EDN7534BXTSA1
ActiveTHE 2EDN7534B IS A FAST DUAL-CHANNEL 5A GATE DRIVER OPTIMIZED FOR DRIVING BOTH STANDARD AND SUPER-JUNCTION MOSFETS.
Deep-Dive with AI
Search across all available documentation for this part.
2EDN7534BXTSA1
ActiveTHE 2EDN7534B IS A FAST DUAL-CHANNEL 5A GATE DRIVER OPTIMIZED FOR DRIVING BOTH STANDARD AND SUPER-JUNCTION MOSFETS.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2EDN7534BXTSA1 |
|---|---|
| Channel Type | Independent |
| Current - Peak Output (Source, Sink) [custom] | 5 A |
| Current - Peak Output (Source, Sink) [custom] | 5 A |
| Driven Configuration | Low-Side |
| Gate Type | P-Channel, N-Channel |
| Input Type | Non-Inverting |
| Logic Voltage - VIL, VIH | 1.4 V, 1.9 V |
| Mounting Type | Surface Mount |
| Number of Drivers | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | SOT-23-6 |
| Rise / Fall Time (Typ) [custom] | 6 ns |
| Rise / Fall Time (Typ) [custom] | 8.6 ns |
| Supplier Device Package | PG-SOT23-6-1 |
| Voltage - Supply [Max] | 20 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.00 | |
| 10 | $ 0.72 | |||
| 25 | $ 0.65 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.49 | |||
| Digi-Reel® | 1 | $ 1.00 | ||
| 10 | $ 0.72 | |||
| 25 | $ 0.65 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.49 | |||
| Tape & Reel (TR) | 3000 | $ 0.47 | ||
| 6000 | $ 0.46 | |||
| 9000 | $ 0.45 | |||
| 15000 | $ 0.45 | |||
| 21000 | $ 0.45 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.08 | |
| 10 | $ 0.78 | |||
| 25 | $ 0.70 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.54 | |||
Description
General part information
2EDN7534 Series
Fast dual-channel 5A gate driver optimized for driving both standard and super-junction MOSFETs, as well as wide band gap power switching devices. TheEiceDRIVER™ 2EDN familyis offered in 8-pin DSO, TSSOP and WSON packages as well as in small and versatile 6-pins SOT23 and TSNP package. High-output-current capability, tight-timing specifications, and reduced output start-up and shut-down times, make the 2EDN family the first choice for many fast-switching applications. Active output clamping shortens the startup time of bootstrapped designs.
