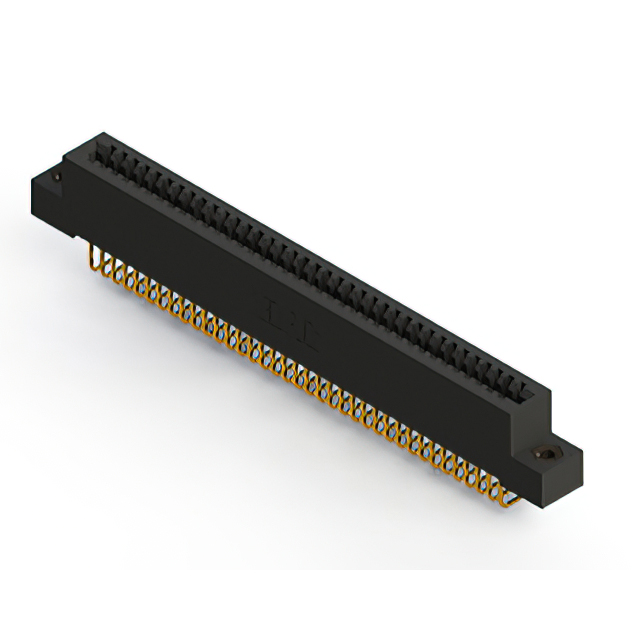

892-037-558-107

Active

EDAC Inc.

CONN EDGE SINGLE FML 37POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-037-558-107

Active

EDAC Inc.

CONN EDGE SINGLE FML 37POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-037-558-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

892-037 Series

Part	Contact Type	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Gender	Pitch [x]	Pitch [x]	Contact Material	Number of Positions	Color	Termination Rows	Mounting Type	Flange Feature	Number of Rows	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Termination	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-037-524-108	Cantilever	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Single	Female	2.54 mm	0.1 in	Copper Alloy	37	Black	1	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	1	Gold	10 Áin	0.25 Ám	37	37	37	Solder	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-037-541-107	Cantilever	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Single	Female	2.54 mm	0.1 in	Copper Alloy	37	Black	1	Through Hole	Flush Mount M3 Threaded Insert Top Opening	1	Gold	10 Áin	0.25 Ám	37	37	37	Wire Wrap	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-037-558-107	Cantilever	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Single	Female	2.54 mm	0.1 in	Copper Alloy	37	Black	1	Through Hole Right Angle	Flush Mount M3 Threaded Insert Top Opening	1	Gold	10 Áin	0.25 Ám	37	37	37	Solder	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-037-523-108	Cantilever	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Single	Female	2.54 mm	0.1 in	Copper Alloy	37	Black	1	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	1	Gold	10 Áin	0.25 Ám	37	37	37	Solder	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-037-540-102	Cantilever	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Single	Female	2.54 mm	0.1 in	Copper Alloy	37	Black	1	Through Hole	Flush Mount Top Opening Unthreaded	1	Gold	10 Áin	0.25 Ám	37	37	37	Wire Wrap	Polyphenylene Sulfide (PPS)	3.25 mm	0.128 "
EDAC Inc. 892-037-541-108	Cantilever	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Single	Female	2.54 mm	0.1 in	Copper Alloy	37	Black	1	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	1	Gold	10 Áin	0.25 Ám	37	37	37	Wire Wrap	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-037-500-101	Cantilever	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Single	Female	2.54 mm	0.1 in	Copper Alloy	37	Black	1	Through Hole		1	Gold	10 Áin	0.25 Ám	37	37	37	Solder Eyelet(s)	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-037-541-112	Cantilever	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Single	Female	2.54 mm	0.1 in	Copper Alloy	37	Black	1	Through Hole	Flush Mount Side Opening Unthreaded	1	Gold	10 Áin	0.25 Ám	37	37	37	Wire Wrap	Polyphenylene Sulfide (PPS)	3.25 mm	0.128 "
EDAC Inc. 892-037-541-101	Cantilever	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Single	Female	2.54 mm	0.1 in	Copper Alloy	37	Black	1	Through Hole		1	Gold	10 Áin	0.25 Ám	37	37	37	Wire Wrap	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-037-542-102	Cantilever	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Single	Female	2.54 mm	0.1 in	Copper Alloy	37	Black	1	Through Hole	Flush Mount Top Opening Unthreaded	1	Gold	10 Áin	0.25 Ám	37	37	37	Wire Wrap	Polyphenylene Sulfide (PPS)	3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 143.29
Newark	Each	1	$ 171.95
		100	$ 140.32
		250	$ 127.77
		500	$ 116.59
		1000	$ 96.63

Description

General part information

892-037 Series

37 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
