TFCC-40-01

Active

Essentra Access Solutions

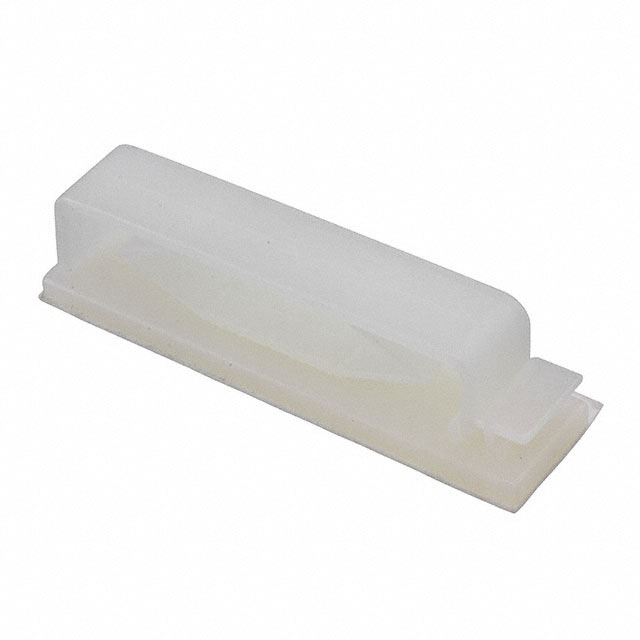

FASTENER, ADHESIVE BACKED FLAT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 67 MM, 15.8 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, ADHESIVE BACKED FLAT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 67 MM, 15.8 MM

Technical Specifications

Parameters and characteristics for this part

Specification	TFCC-40-01

Adhesive	Acrylic Based (RMS-92)
Color	Natural
Height [z]	0.62 in
Height [z]	15.75 mm
Length	67 mm, 2.638 "
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Adhesive
Opening Size [z]	2.13 in
Opening Size [z]	54.1 mm
Type	Flat, Clip
Type Attributes	Hinged, Top Lock
Width [x]	0.62 in
Width [x]	15.75 mm

Part	Material Flammability Rating	Type	Color	Height [z]	Height [z]	Width [x]	Width [x]	Opening Size [z]	Opening Size [z]	Type Attributes	Mounting Type	Length	Adhesive	Material
Essentra Access Solutions TFCC-40-01	UL94 V-2	Clip Flat	Natural	0.62 in	15.75 mm	0.62 in	15.75 mm	2.13 in	54.1 mm	Hinged Top Lock	Adhesive	2.638 " 67 mm	Acrylic Based (RMS-92)	Polyamide (PA66) Nylon 6/6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Flat Natural Adhesive 2.130" (54.10mm)

Technical documentation and resources
