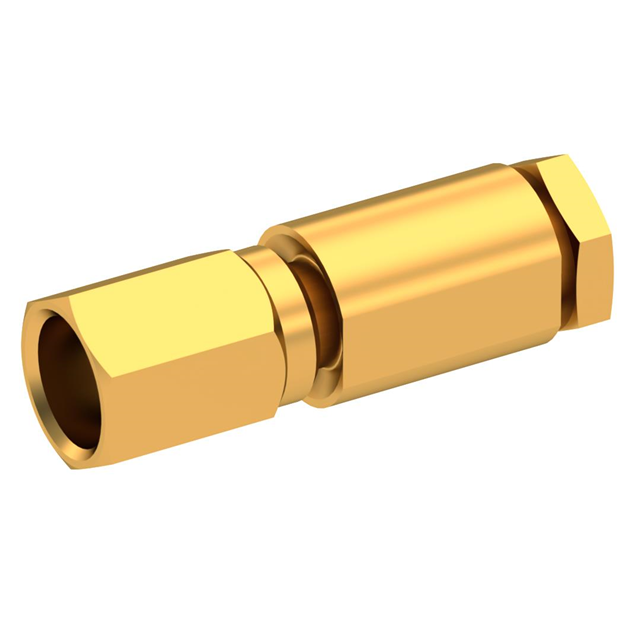

7002-1541-010

Active

Radiall USA, Inc.

SSMC F STR NA SD .086

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMC F STR NA SD .086

Technical Specifications

Parameters and characteristics for this part

Specification	7002-1541-010

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	250 VDC

Part	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Center Contact Plating	Impedance	Body Material	Voltage Rating	Connector Style	Mounting Type	Dielectric Material	Frequency - Max [Max]	Center Contact Material	Mating Cycles	Body Finish	Number of Ports	Contact Termination	Connector Type	Housing Color
Radiall USA, Inc. 7002-1541-010	Clamp	-65 ░C	165 °C	RG-405 (.085" Semi Rigid)	Gold	50 Ohms	Beryllium Copper	250 VDC	SSMC	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	12.4 GHz	Beryllium Copper	500	Gold	1	Solder	Female Socket Plug	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
