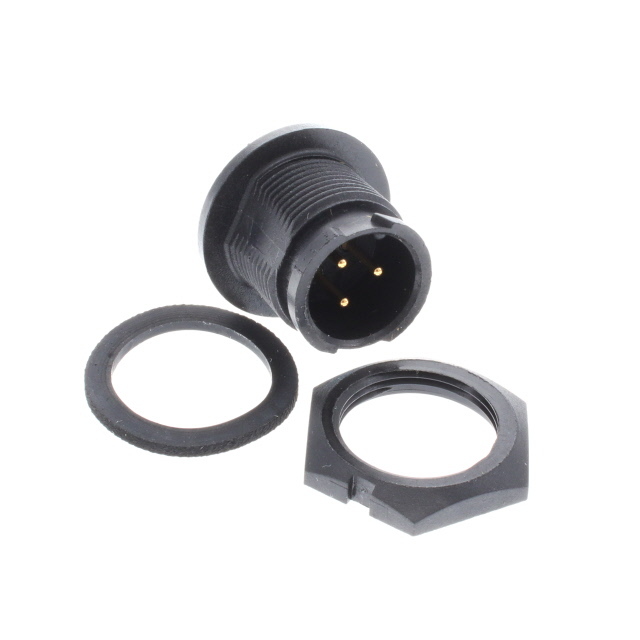

W18280-3PG-P-318

Active

Conxall/Switchcraft

CONN RCPT MALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Insert Material	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Backshell Material, Plating	Connector Type	Termination	Contact Finish - Mating	Primary Material	Orientation	Mounting Type	Fastening Type	Color	Number of Positions	Contact Material	Shielding	Features
Conxall/Switchcraft W18280-2SG-P-318	Thermoplastic	4.57 mm	0.18 in	0.2 in	5.08 mm	Thermoplastic	Receptacle Female Sockets	Crimp	Gold	Plastic	Keyed	Free Hanging (In-Line)	Bayonet Lock	Black	2	Copper Alloy	Unshielded	Backshell UV Resistant
Conxall/Switchcraft W18280-3PG-P-318	Thermoplastic	4.57 mm	0.18 in	0.2 in	5.08 mm	Thermoplastic	Male Pins Receptacle	Crimp	Gold	Plastic	Keyed	Free Hanging (In-Line)	Bayonet Lock	Black		Copper Alloy	Unshielded	Backshell UV Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 7.17

General part information

3 Position Circular Connector Receptacle, Male Pins Crimp

Technical documentation and resources

No documents available
