CPFE1000F-48
ActiveAC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 1 OUTPUTS, 1.008 KW, 48 VDC, 21 A
Deep-Dive with AI
Search across all available documentation for this part.
CPFE1000F-48
ActiveAC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 1 OUTPUTS, 1.008 KW, 48 VDC, 21 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CPFE1000F-48 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 21 A |
| Efficiency | 81 % |
| Features | Remote On/Off, Standby Output, Universal Input, Remote Sense, Baseplate, I2C Interface, Load Sharing, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 720 W |
| Size / Dimension [x] | 10.63 in |
| Size / Dimension [x] | 270 mm |
| Size / Dimension [y] | 190 mm |
| Size / Dimension [y] | 7.48 in |
| Size / Dimension [z] | 61 mm |
| Size / Dimension [z] | 2.4 in |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4.242 kV |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CPFE1000 Series

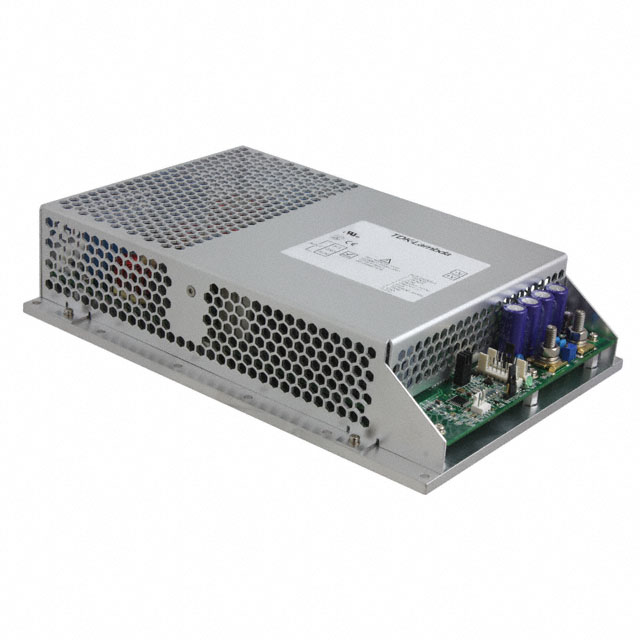

CPFE1000F-48 is a CPFE1000F series of industrial AC-DC conduction cooled power supply. It has an integral baseplate. Features include voltage and current monitoring, remote on/off, remote sense, a standby supply, I²C monitoring and a wide operating temperature range of -40°C to +70°C. The CPFE1000F also complies with MIL-STD-810F vibration and MIL-STD-810E shock. It includes overcurrent, overvoltage and overtemperature protection. Application includes industrial, COTS, test, LED, COMM, broadcast. Certified by IEC/UL/CSA/EN62368-1, 60950-1.
