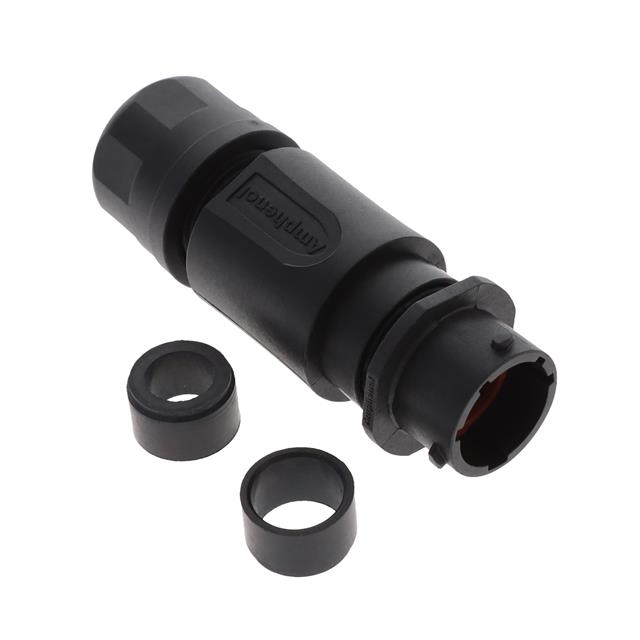

RTS1BS12N10P03

Active

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 10POS INLINE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 10POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	RTS1BS12N10P03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Black
Includes	6 pcs - 1 Connector, 1 Backshell, 1 Clamp Ring, 1 Nut, 1 O-Ring, 1 Seal
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shielding	Unshielded
Type	For Male Pins

Part	Ingress Protection	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Contact Size	Shielding	Type	Orientation	Features	Shell Size - Insert	Mounting Type	Includes	Contact Shape	Fastening Type	Note	Material Flammability Rating	Housing Color	Connector Type	Number of Positions
Amphenol Sine Systems Corp RTS1BS12N3S03	IP67 IP69K	Crimp	125 °C	-40 °C	Thermoplastic	16	Unshielded	For Female Sockets	N	Backshell	12-3	Free Hanging (In-Line)	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	Circular	Bayonet Lock	Contacts Not Included	UL94 V-0	Black	Receptacle Housing
Amphenol Sine Systems Corp RTS1BS12N4S03	IP67 IP69K	Crimp	125 °C	-40 °C	Thermoplastic	16	Unshielded	For Female Sockets	N	Backshell	12-4	Free Hanging (In-Line)	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	Circular	Bayonet Lock	Contacts Not Included	UL94 V-0	Black	Receptacle Housing	4
Amphenol Sine Systems Corp RTS1BS12N10P03	IP67 IP69K	Crimp	125 °C	-40 °C	Thermoplastic	20	Unshielded	For Male Pins	N	Backshell		Free Hanging (In-Line)	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	Circular	Bayonet Lock	Contacts Not Included	UL94 V-0	Black	Receptacle Housing	10
Amphenol Sine Systems Corp RTS1BS12N2P03	IP67 IP69K	Crimp	125 °C	-40 °C	Thermoplastic	2.5 mm 20	Unshielded	For Male Pins	N	Backshell	12-2	Free Hanging (In-Line)	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	Circular	Bayonet Lock	Contacts Not Included	UL94 V-0	Black	Receptacle Housing	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
