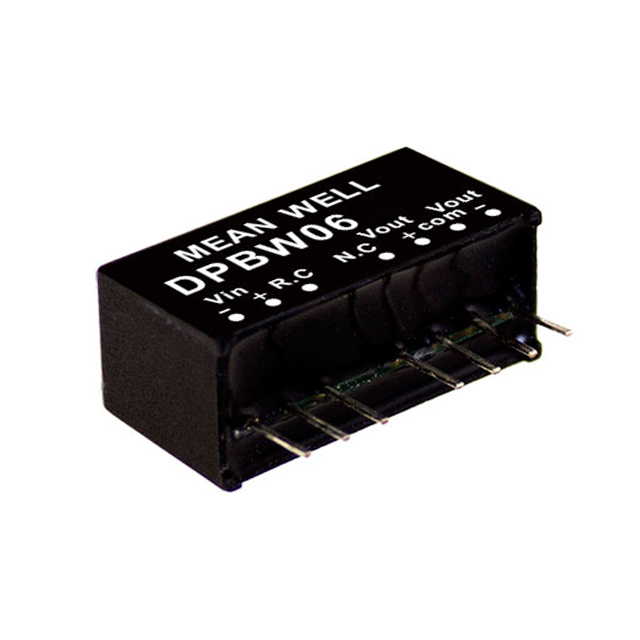

DPBW06F-15

Active

MEAN WELL USA Inc.

DC DC CONVERTER +/-15V 6W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

DC DC CONVERTER +/-15V 6W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Power (Watts)	Type	Mounting Type	Applications	Voltage - Input (Max) [Max]	Voltage - Isolation	Voltage - Input (Min) [Min]	Package / Case	Package / Case	Voltage - Output 1	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Number of Outputs	Efficiency	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
MEAN WELL USA Inc. DPBW06F-05	OCP Remote On/Off SCP	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	6 W	Isolated Module	Through Hole	ITE (Commercial)	36 V	1.5 kV	9 V	8-SIP Module	7 Leads	5 V	600 mA	85 °C	-40 °C	Active Low Enable	2	86 %	-5 V
MEAN WELL USA Inc. DPBW06F-15	OCP Remote On/Off SCP	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	6 W	Isolated Module	Through Hole	ITE (Commercial)	36 V	1.5 kV	9 V	8-SIP Module	7 Leads	15 V		85 °C	-40 °C	Active Low Enable	2	88 %	-15 V
MEAN WELL USA Inc. DPBW06G-12	OCP Remote On/Off SCP	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	6 W	Isolated Module	Through Hole	ITE (Commercial)	75 V	1.5 kV	18 V	8-SIP Module	7 Leads	12 V		85 °C	-40 °C	Active Low Enable	2	89 %	-12 V	250 mA	250 mA
MEAN WELL USA Inc. DPBW06F-12	OCP Remote On/Off SCP	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	6 W	Isolated Module	Through Hole	ITE (Commercial)	36 V	1.5 kV	9 V	8-SIP Module	7 Leads	12 V		85 °C	-40 °C	Active Low Enable	2	88 %	-12 V	250 mA	250 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 9V - 36V Input
