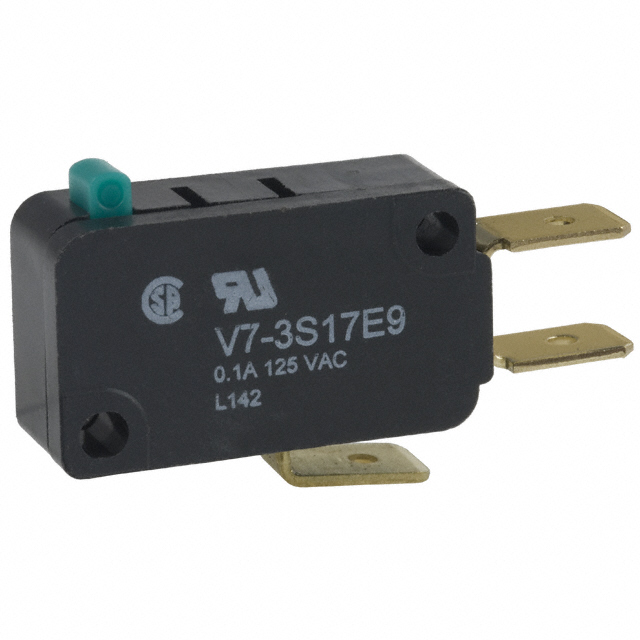

V7-3S17E9

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Operating Position	Operating Position	Mounting Type	Voltage Rating - AC	Termination Style	Operating Force	Mechanical Life	Actuator Type	Differential Travel	Differential Travel	Electrical Life	Circuit	Switch Function	Overtravel	Overtravel	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]
Honeywell Sensing and Productivity Solutions V7-3S17D8-000-3	100 mA	0.579 in	14.7 mm	Chassis Mount	125 V	Quick Connect - 0.187" (4.7mm)	50 gf	10000000 Cycles	Round (Pin Plunger)	0.15 mm	0.006 in	100000 Cycles	SPDT	On-Mom	1.27 mm	0.05 in	0.047 in	1.2 mm	85 °C	-40 °C
Honeywell Sensing and Productivity Solutions V7-3S17E9	100 mA	0.579 in	14.7 mm	Chassis Mount	125 V	Quick Connect - 0.250" (6.3mm)	50 gf	10000000 Cycles	Round (Pin Plunger)	0.25 mm	0.01 in	100000 Cycles	SPDT	On-Mom	1.27 mm	0.05 in	0.047 in	1.2 mm	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
