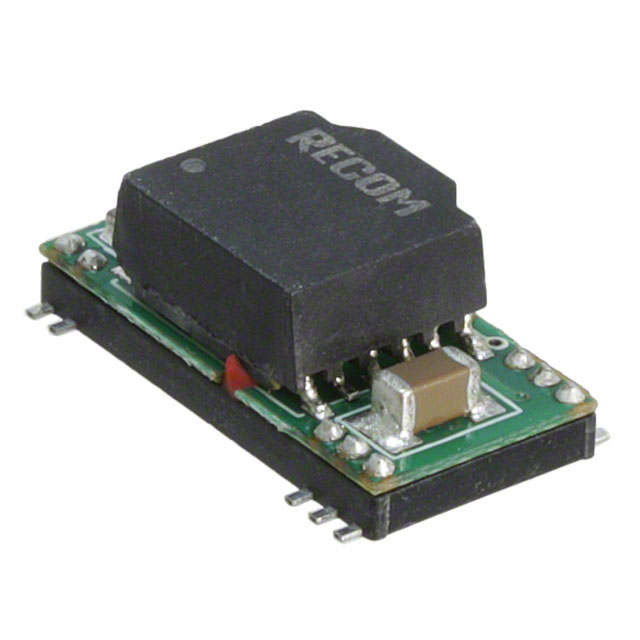

RAM-1205S-R

Active

RECOM Power

1W DC/DC-CONVERTER ECONOLINE SMD 3KV UNREG ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

RECOM Power

1W DC/DC-CONVERTER ECONOLINE SMD 3KV UNREG ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Isolated DC/DC Converters - SMD 1W 24VIN 05VOUT 3kVDC ISO

Part	Voltage - Output 1	Voltage - Isolation	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]
RECOM Power RAM-2405S	5 V	3000 V	1	80 %	21.6 V	SCP	Isolated Module	100 °C	-40 °C	ITE (Commercial)	200 mA	26.4 V
RECOM Power RAM-2405S/H-R	5 V	4000 V	1	80 %	21.6 V	SCP	Isolated Module	100 °C	-40 °C	ITE (Commercial) Medical	200 mA	26.4 V
RECOM Power RAM-1205S-R	5 V	3000 V	1	80 %	10.8 V	SCP	Isolated Module	100 °C	-40 °C	ITE (Commercial)	200 mA	13.2 V
RECOM Power RAM-0505S/H	5 V	4000 V	1	78 %	4.5 V	SCP	Isolated Module	100 °C	-40 °C	ITE (Commercial) Medical	200 mA	5.5 V
RECOM Power RAM-1205S/H	5 V	4000 V	1	80 %	10.8 V	SCP	Isolated Module	100 °C	-40 °C	ITE (Commercial) Medical	200 mA	13.2 V
RECOM Power RAM-0505S	5 V	3000 V	1	78 %	4.5 V	SCP	Isolated Module	100 °C	-40 °C	ITE (Commercial)	200 mA	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 13.57
	Digi-Reel®	1	$ 13.57
	Tape & Reel (TR)	400	$ 11.30
Newark	Each (Supplied on Full Reel)	400	$ 10.42
Sager	N/A	1	$ 13.59
		5	$ 13.14
		10	$ 12.54
		25	$ 12.16
		50	$ 11.98
		100	$ 11.64
		250	$ 10.87

General part information

Isolated DC/DC Converters - SMD 1W 24VIN 05VOUT 3kVDC ISO
