EVB_RT2853BHGQW

Active

Richtek USA Inc.

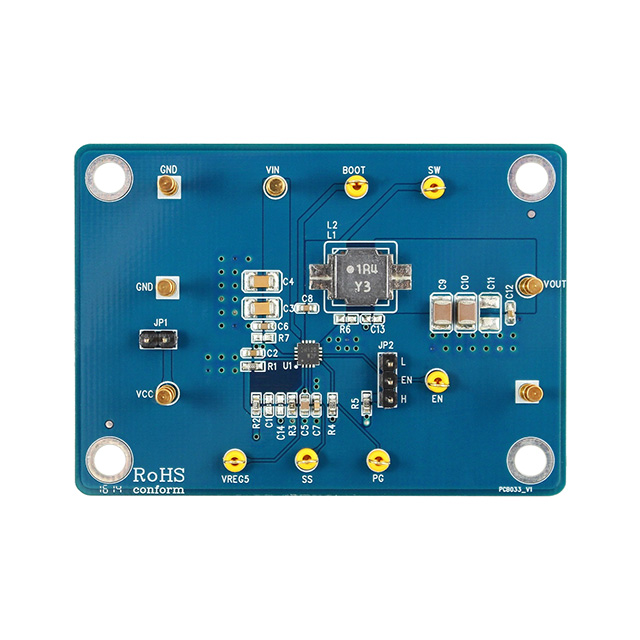

EVAL MODULE FOR RT2853BHGQW

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT2853BHGQW

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output	Number of Outputs	Frequency - Switching	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Package / Case	Voltage - Output (Max) [Max]	Mounting Type	Output Configuration	Topology	Voltage - Input (Max) [Max]	Supplier Device Package	Function	Output Type	Main Purpose	Outputs and Type	Outputs and Type	Voltage - Output	Regulator Topology	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Supplied Contents
Richtek USA Inc. RT2853BLGQW	3 A	1	650 kHz	85 °C	-40 °C	4.5 V	16-WFQFN Exposed Pad	7 V	Surface Mount	Positive	Buck	18 V	16-WQFN (3x3)	Step-Down	Adjustable
Richtek USA Inc. RT2853ALGQW	3 A	1	650 kHz	85 °C	-40 °C	4.5 V	16-WFQFN Exposed Pad	7 V	Surface Mount	Positive	Buck	18 V	16-WQFN (3x3)	Step-Down	Adjustable
Richtek USA Inc. RT2853BHGQW	3 A	1	650 kHz	85 °C	-40 °C	4.5 V	16-WFQFN Exposed Pad	7 V	Surface Mount	Positive	Buck	18 V	16-WQFN (3x3)	Step-Down	Adjustable
Richtek USA Inc. EVB_RT2853BHGQW	3 A		650 kHz													DC/DC Step Down	Non-Isolated	1	1.05 V	Buck	RT2853B	18 V	4.5 V	Fully Populated	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.19

General part information

RT2853B ACOT® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
