803-13-004-10-007000

Active

Mill-Max Manufacturing Corp.

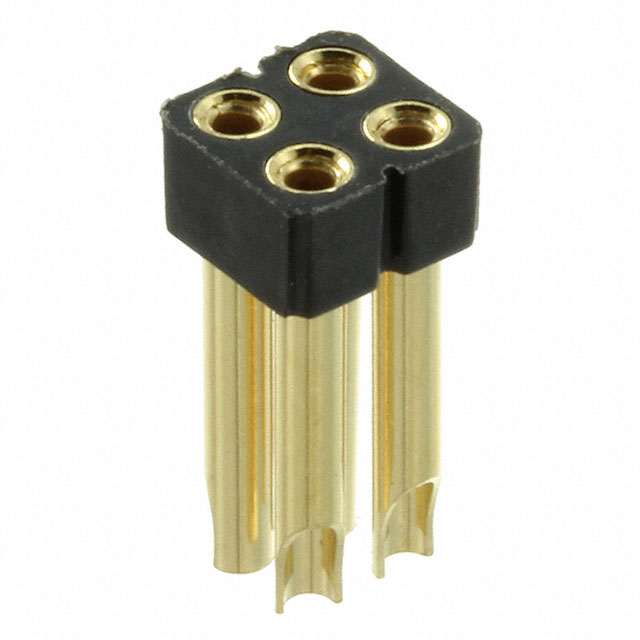

CONN RCPT 4POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

803-13-004-10-007000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 4POS 0.1 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	803-13-004-10-007000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post [x]	8.64 mm
Contact Length - Post [x]	0.34 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in

803-13 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Material	Connector Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Shape	Contact Type	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Material	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type
Mill-Max Manufacturing Corp. 803-13-006-10-007000	-55 °C	125 °C	Push-Pull	2	2.54 mm	0.1 in	Gold	10 çin	0.25 çm	6	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	All	0.1 in	2.54 mm	Black	Circular	Female Socket	UL94 V-0	8.64 mm	0.34 in	4.5 A	Beryllium Copper	Gold	30 Áin	0.76 Ám	Through Hole
Mill-Max Manufacturing Corp. 803-13-012-10-007000	-55 °C	125 °C	Push-Pull	2	2.54 mm	0.1 in	Gold	10 çin	0.25 çm	12	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	All	0.1 in	2.54 mm	Black	Circular	Female Socket	UL94 V-0	8.64 mm	0.34 in	4.5 A	Beryllium Copper	Gold	30 Áin	0.76 Ám	Through Hole
Mill-Max Manufacturing Corp. 803-13-014-10-007000	-55 °C	125 °C	Push-Pull	2	2.54 mm	0.1 in	Gold	10 çin	0.25 çm	14	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	All	0.1 in	2.54 mm	Black	Circular	Female Socket	UL94 V-0	8.64 mm	0.34 in	4.5 A	Beryllium Copper	Gold	30 Áin	0.76 Ám	Through Hole
Mill-Max Manufacturing Corp. 803-13-010-10-007000	-55 °C	125 °C	Push-Pull	2	2.54 mm	0.1 in	Gold	10 çin	0.25 çm	10	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	All	0.1 in	2.54 mm	Black	Circular	Female Socket	UL94 V-0	8.64 mm	0.34 in	4.5 A	Beryllium Copper	Gold	30 Áin	0.76 Ám	Through Hole
Mill-Max Manufacturing Corp. 803-13-020-10-007000	-55 °C	125 °C	Push-Pull	2	2.54 mm	0.1 in	Gold	10 çin	0.25 çm	20	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	All	0.1 in	2.54 mm	Black	Circular	Female Socket	UL94 V-0	8.64 mm	0.34 in	4.5 A	Beryllium Copper	Gold	30 Áin	0.76 Ám	Through Hole
Mill-Max Manufacturing Corp. 803-13-064-10-007000	-55 °C	125 °C	Push-Pull	2	2.54 mm	0.1 in	Gold	10 çin	0.25 çm	64	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	All	0.1 in	2.54 mm	Black	Circular	Female Socket	UL94 V-0	8.64 mm	0.34 in	4.5 A	Beryllium Copper	Gold	30 Áin	0.76 Ám	Through Hole
Mill-Max Manufacturing Corp. 803-13-004-10-007000	-55 °C	125 °C	Push-Pull	2	2.54 mm	0.1 in	Gold	10 çin	0.25 çm	4	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	All	0.1 in	2.54 mm	Black	Circular	Female Socket	UL94 V-0	8.64 mm	0.34 in	4.5 A	Beryllium Copper	Gold	30 Áin	0.76 Ám	Through Hole
Mill-Max Manufacturing Corp. 803-13-008-10-007000	-55 °C	125 °C	Push-Pull	2	2.54 mm	0.1 in	Gold	10 çin	0.25 çm	8	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	All	0.1 in	2.54 mm	Black	Circular	Female Socket	UL94 V-0	8.64 mm	0.34 in	4.5 A	Beryllium Copper	Gold	30 Áin	0.76 Ám	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.99
		10	$ 6.79
		102	$ 5.76
		510	$ 5.14
		1020	$ 4.90

Description

General part information

803-13 Series

4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
