AS1130-BWLT WLP LF T&R
Activeams-OSRAM USA INC.
IC DRVR DOT MATRIX 20WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
AS1130-BWLT WLP LF T&R
Activeams-OSRAM USA INC.
IC DRVR DOT MATRIX 20WLCSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AS1130-BWLT WLP LF T&R |
|---|---|
| Configuration | Dot Matrix |
| Current - Supply | 340 mA |
| Display Type | LED |
| Interface | I2C |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

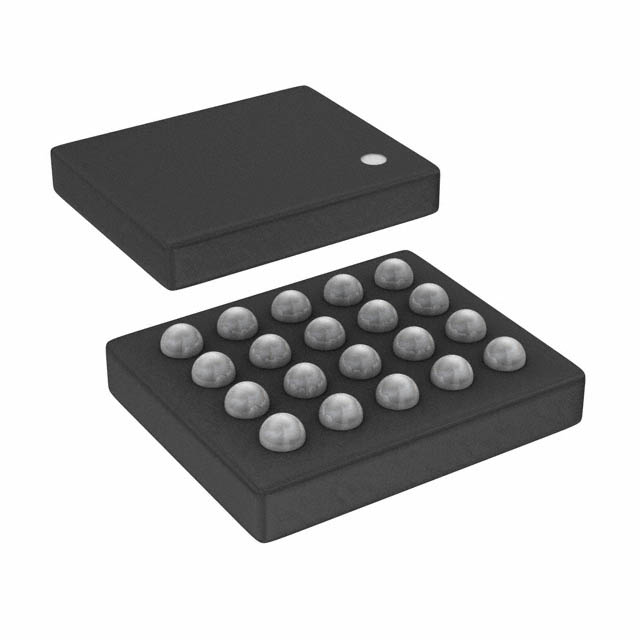

| Package / Case | WLCSP, 20-UFBGA |
| Supplier Device Package | 20-WLCSP (2.48x2.23) |
| Supplier Device Package [x] | 2.48 |
| Supplier Device Package [y] | 2.23 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.50 | |
| 10 | $ 2.24 | |||
| 25 | $ 1.91 | |||
| 100 | $ 1.54 | |||
| 250 | $ 1.35 | |||
| 500 | $ 1.24 | |||
| Digi-Reel® | 1 | $ 3.50 | ||
| 10 | $ 2.24 | |||
| 25 | $ 1.91 | |||
| 100 | $ 1.54 | |||
| 250 | $ 1.35 | |||
| 500 | $ 1.24 | |||
| Tape & Reel (TR) | 1000 | $ 1.15 | ||
| 2000 | $ 1.08 | |||
Description
General part information
AS1130 Series
LED Driver 20-WLCSP (2.48x2.23)
Documents
Technical documentation and resources
No documents available
