M13502 SL002

Active

ALPHA WIRE

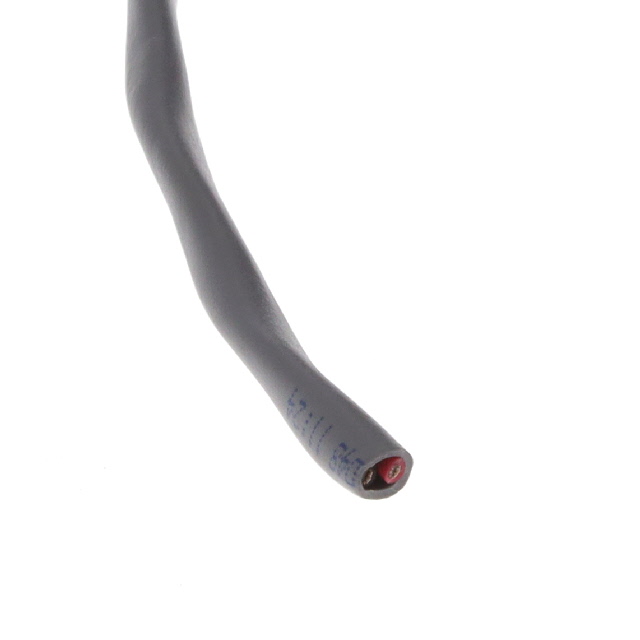

CABLE 2COND 18AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 18AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	M13502 SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.198 in
Jacket (Insulation) Diameter [diameter]	5.03 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2509
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Number of Conductors	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Jacket (Insulation) Material	Wire Gauge	Conductor Material	Jacket Color	Voltage
ALPHA WIRE M13502 SL002	0.02 in	0.508 mm	500 '	152.4 m	2	Poly-Vinyl Chloride (PVC)	0.198 in	5.03 mm	Multi-Conductor	16	30 AWG	-20 C	80 C	UL Style 2509	Poly-Vinyl Chloride (PVC)	18 AWG	Copper Tinned	Slate	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Slate 18 AWG 500.0' (152.4m)
