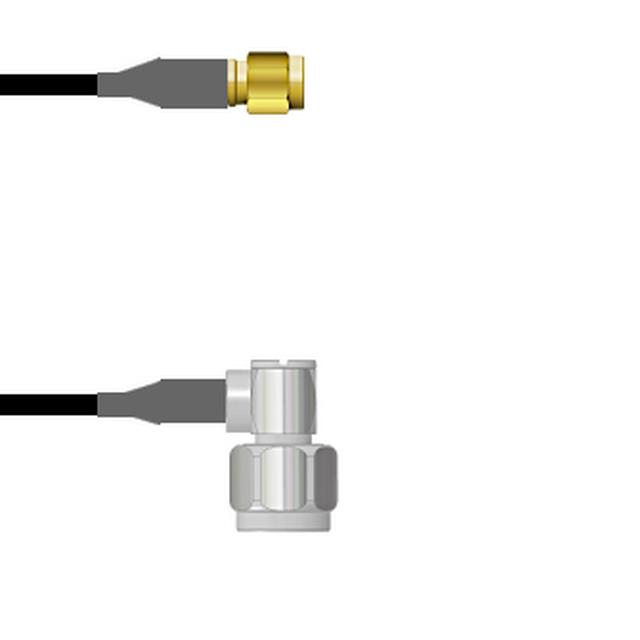

Q-3E02E000D1.5M
ActiveAmphenol Custom Cable
COAX CBL SMA TO N-TYPE 4.9'
Deep-Dive with AI
Search across all available documentation for this part.
Q-3E02E000D1.5M
ActiveAmphenol Custom Cable
COAX CBL SMA TO N-TYPE 4.9'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-3E02E000D1.5M |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR 195 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 59.1 in |
| Length | 4.9 ft |
| Length | 1.5 m |
| Overall Impedance | 50 Ohms |
| Style | SMA to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 163.48 | |
| 25 | $ 160.33 | |||
| 50 | $ 157.18 | |||
| 100 | $ 154.02 | |||
| 250 | $ 150.87 | |||
Description
General part information
Q-3E02E0 Series
Cable Assembly Coaxial SMA to N-Type LMR 195 59.1" (1.5m) 4.9'
Documents
Technical documentation and resources
No documents available
