0411-SS-20
ActiveRAF Electronic Hardware

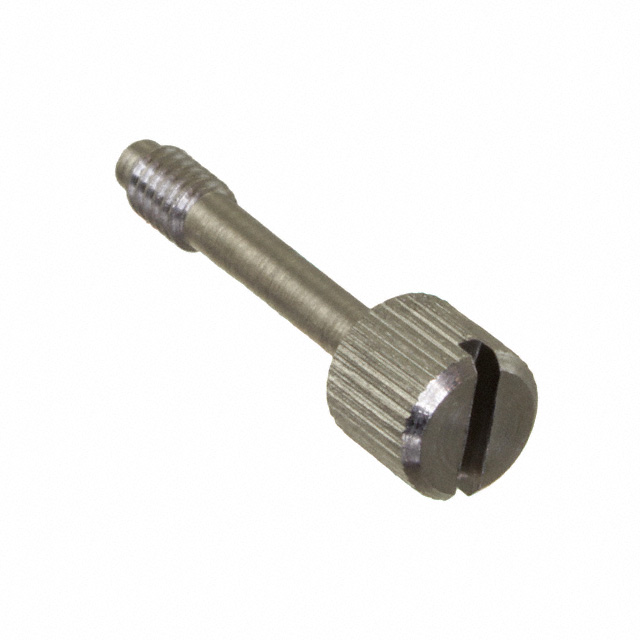

PANEL SCREW KNOB SLOTTED #8-32
Deep-Dive with AI
Search across all available documentation for this part.
0411-SS-20
ActiveRAF Electronic Hardware
PANEL SCREW KNOB SLOTTED #8-32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0411-SS-20 |
|---|---|
| Drive Type | Slotted |
| Head Diameter [diameter] | 0.313 in |
| Head Diameter [diameter] | 7.94 mm |
| Head Height | 7.94 mm |
| Head Height | 0.313 " |
| Length - Below Head [x] | 23.81 mm |
| Length - Below Head [x] | 0.938 in |
| Length - Overall | 1.25 in |
| Length - Overall | 31.75 mm |
| Material | Stainless Steel |
| Screw Head Type | Knob |
| Thread Size | #8-32 |
| Type | Panel Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.55 | |
| 5 | $ 15.25 | |||
| 10 | $ 14.43 | |||
| 25 | $ 13.47 | |||
| 50 | $ 12.84 | |||
| 100 | $ 12.27 | |||
| 250 | $ 11.61 | |||
| 500 | $ 11.17 | |||
Description
General part information
0411-SS Series
#8-32 Knob Panel Screw Slotted Drive Stainless Steel
