09210643001
ActiveHARTING Technology Group

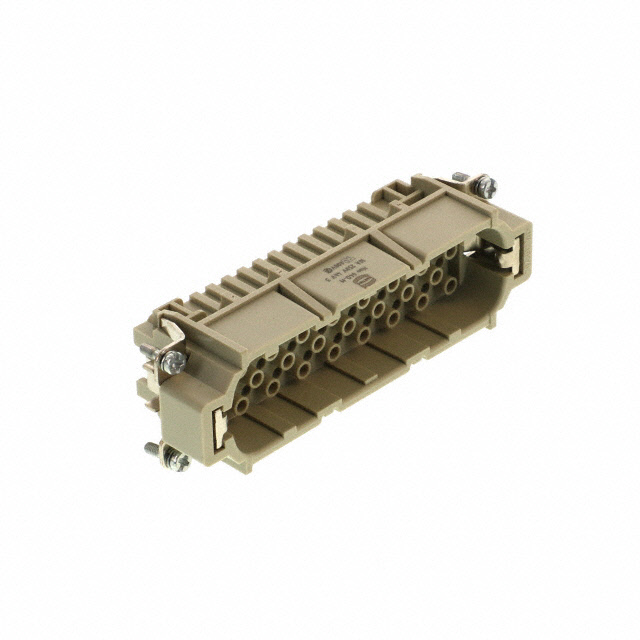

HEAVY DUTY CONNECTOR, 64+PE, LESS CONTACTS, HAN D SERIES, INSERT, 65 CONTACTS, 24B, PLUG
Deep-Dive with AI
Search across all available documentation for this part.
09210643001
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, 64+PE, LESS CONTACTS, HAN D SERIES, INSERT, 65 CONTACTS, 24B, PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09210643001 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | Han® D |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 64+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 24 B |
| Termination Style | Crimp |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09210643 Series
The 09210643001 is a 64-position Han D Male Insert Crimp for 24B series connectors. 0.14 to 2.5mm² wire cross section area with crimp terminals. Made of polycarbonate, RAL 7032 (light grey) color.
