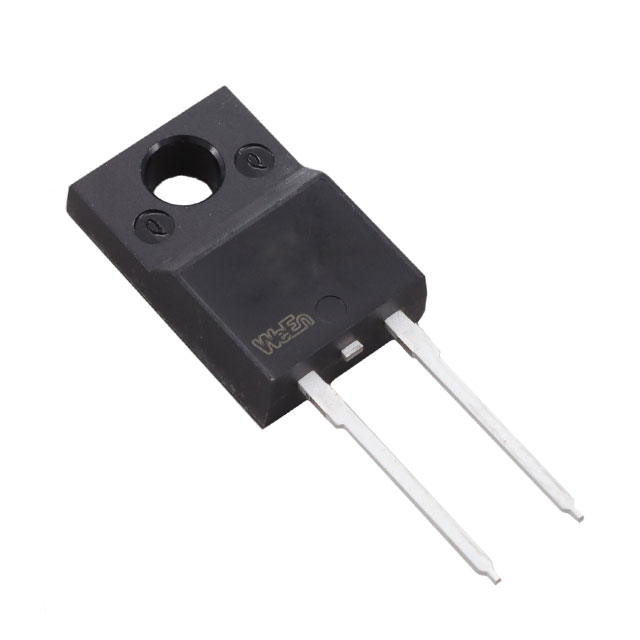

BYT79X-600PQ

Active

WeEn Semiconductors Co., Ltd

DIODE GEN PURP 600V 15A TO220FP

Search across all available documentation for this part.

Active

WeEn Semiconductors Co., Ltd

DIODE GEN PURP 600V 15A TO220FP

Technical Specifications

Parameters and characteristics for this part

Specification	BYT79X-600PQ

Current - Average Rectified (Io)	15 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	TO-220-2 Full Pack, Isolated Tab
Reverse Recovery Time (trr)	60 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-220FP
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.38 V

Part	Mounting Type	Current - Average Rectified (Io)	Technology	Operating Temperature - Junction	Voltage - Forward (Vf) (Max) @ If	Speed	Package / Case	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]
WeEn Semiconductors Co., Ltd BYT79X-600,127	Through Hole	15 A	Standard	150 °C	1.38 V	200 mA 500 ns	TO-220-2 Full Pack Isolated Tab	TO-220FP	600 V	50 µA	60 ns
WeEn Semiconductors Co., Ltd BYT79-500,127	Through Hole	14 A	Standard	150 °C	1.38 V	200 mA 500 ns	TO-220-2	TO-220AC	500 V	50 µA	60 ns
WeEn Semiconductors Co., Ltd BYT79-600,127	Through Hole	15 A	Standard	150 °C	1.38 V	200 mA 500 ns	TO-220-2	TO-220AC	600 V	50 µA	60 ns
WeEn Semiconductors Co., Ltd BYT79X-600PQ	Through Hole	15 A	Standard		1.38 V	200 mA 500 ns	TO-220-2 Full Pack Isolated Tab	TO-220FP	600 V	10 µA	60 ns	175 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 600 V 15A Through Hole TO-220FP
