887-037-544-103
ActiveEDAC Inc.

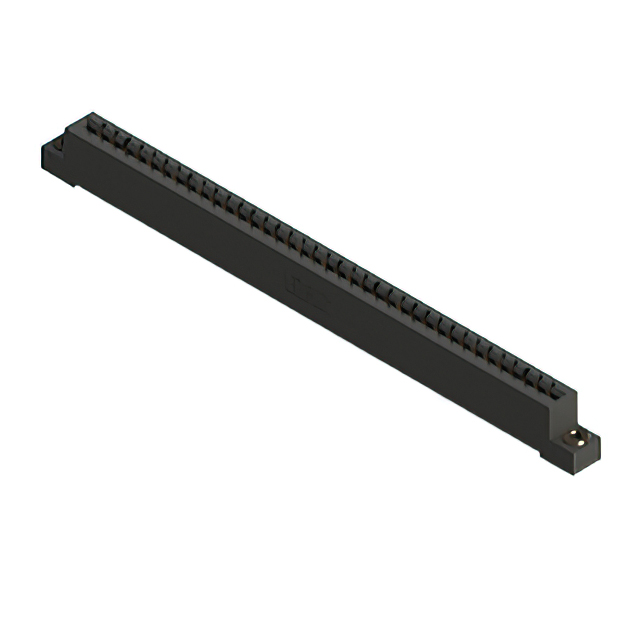

CONN EDGE SGL FMALE 37POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
887-037-544-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 37POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 887-037-544-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
887-037 Series
...
| Part | Contact Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Color | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Card Type | Termination | Termination Rows | Gender | Read Out | Flange Feature | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Rows | Contact Material | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | 37 | 37 | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 0.156 in | 3.96 mm | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Solder | 1 | Female | Single | 3.25 mm | 0.128 in | 10 Áin | 0.25 Ám | 37 | 1 | Copper Alloy | Through Hole | |||
EDAC Inc. | Cantilever | 37 | 37 | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 0.156 in | 3.96 mm | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Wire Wrap | 1 | Female | Single | 10 Áin | 0.25 Ám | 37 | 1 | Copper Alloy | Through Hole | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | ||
EDAC Inc. | Cantilever | 37 | 37 | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 0.156 in | 3.96 mm | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Wire Wrap | 1 | Female | Single | 10 Áin | 0.25 Ám | 37 | 1 | Copper Alloy | Through Hole | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | ||
EDAC Inc. | Cantilever | 37 | 37 | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 0.156 in | 3.96 mm | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Wire Wrap | 1 | Female | Single | 10 Áin | 0.25 Ám | 37 | 1 | Copper Alloy | Through Hole | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | ||
EDAC Inc. | Cantilever | 37 | 37 | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 0.156 in | 3.96 mm | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Wire Wrap | 1 | Female | Single | 10 Áin | 0.25 Ám | 37 | 1 | Copper Alloy | Through Hole | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Cantilever | 37 | 37 | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 0.156 in | 3.96 mm | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Wire Wrap | 1 | Female | Single | 10 Áin | 0.25 Ám | 37 | 1 | Copper Alloy | Through Hole | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | ||
EDAC Inc. | Cantilever | 37 | 37 | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 0.156 in | 3.96 mm | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Solder Eyelet(s) | 1 | Female | Single | 3.25 mm | 0.128 in | 10 Áin | 0.25 Ám | 37 | 1 | Copper Alloy | Through Hole | Side Mount Opening Unthreaded | ||
EDAC Inc. | Cantilever | 37 | 37 | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 0.156 in | 3.96 mm | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Solder Eyelet(s) | 1 | Female | Single | 10 Áin | 0.25 Ám | 37 | 1 | Copper Alloy | Through Hole | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Cantilever | 37 | 37 | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 0.156 in | 3.96 mm | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Wire Wrap | 1 | Female | Single | 10 Áin | 0.25 Ám | 37 | 1 | Copper Alloy | Through Hole | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Cantilever | 37 | 37 | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 0.156 in | 3.96 mm | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Solder | 1 | Female | Single | 10 Áin | 0.25 Ám | 37 | 1 | Copper Alloy | Through Hole | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 69.08 | |
Description
General part information
887-037 Series
37 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
