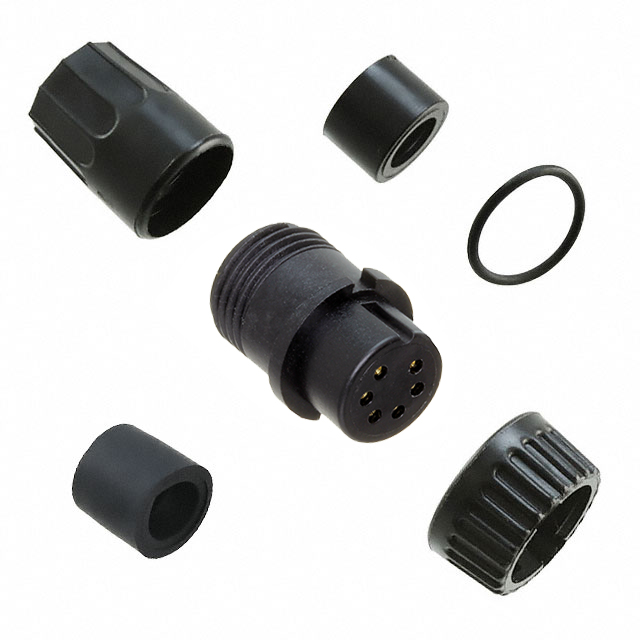

3282-6SG-324

Active

Conxall/Switchcraft

CONN PLUG FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Multi-Con-X Connectors

3282-6SG-324

Active

Conxall/Switchcraft

CONN PLUG FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Multi-Con-X Connectors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3282-6SG-324

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	6.86 mm
Cable Opening [Max] [diameter]	0.27 in
Cable Opening [Min] [diameter]	0.24 in
Cable Opening [Min] [diameter]	6.1 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

3282-6S Series

Part	Backshell Material, Plating	Mounting Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Material	Voltage Rating	Orientation	Contact Finish - Mating	Connector Type	Fastening Type	Primary Material	Ingress Protection	Features	Current Rating (Amps)	Number of Positions	Color	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3282-6SG-524	Nylon Polyamide (PA)	Free Hanging (In-Line)	0.24 in	6.86 mm	6.1 mm	0.27 in	-40 °C	115 °C	Unshielded	Brass	600 V	Keyed	Gold	Female Sockets Plug	Bayonet Lock	Plastic	Weathertight	Backshell Cable Clamp	5.6 A	6	Black
Conxall/Switchcraft 3282-6SG-515	Nylon Polyamide (PA)	Free Hanging (In-Line)					-40 °C	115 °C	Unshielded	Brass	600 V	Keyed	Gold	Female Sockets Plug	Bayonet Lock	Plastic	Weathertight	Backshell Cable Clamp	5.6 A	6	Black	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3282-6SG-324	Nylon Polyamide (PA)	Free Hanging (In-Line)	0.24 in	6.86 mm	6.1 mm	0.27 in	-40 °C	115 °C	Unshielded	Brass	600 V	Keyed	Gold	Female Sockets Plug	Bayonet Lock	Plastic	Weathertight	Backshell	5.6 A	6	Black
Conxall/Switchcraft 3282-6SG-315	Nylon Polyamide (PA)	Free Hanging (In-Line)					-40 °C	115 °C	Unshielded	Brass	600 V	Keyed	Gold	Female Sockets Plug	Bayonet Lock	Plastic	Weathertight	Backshell	5.6 A	6	Black	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3282-6SG-3DC	Nylon Polyamide (PA)	Free Hanging (In-Line)					-40 °C	115 °C	Unshielded	Brass	600 V	Keyed	Gold	Female Sockets Plug	Bayonet Lock	Plastic	Weathertight	Backshell	5.6 A	6	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.68
		10	$ 9.47
		25	$ 9.11
		50	$ 8.74
		100	$ 8.55

Description

General part information

3282-6S Series

6 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Multi-Con-X Connectors

Datasheet
