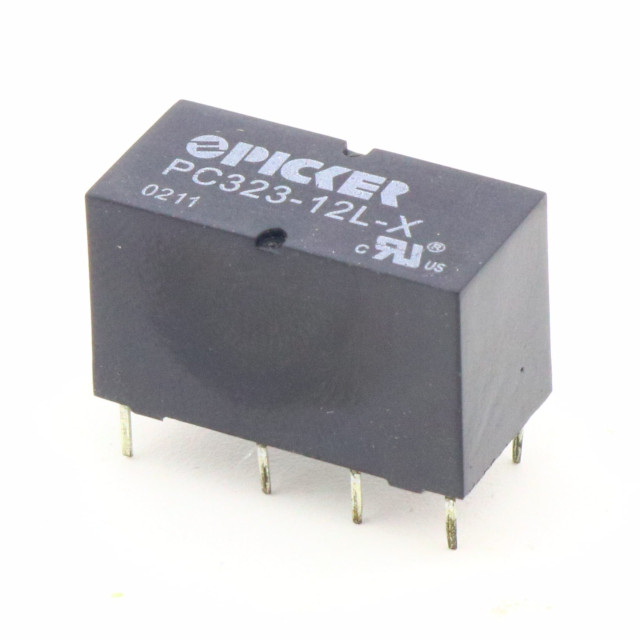

PC323-12L-X
ActivePicker Components
RELAY TELECOM DPDT 2A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC323-12L-X |
|---|---|
| Coil Insulation | Class B |
| Coil Resistance | 960 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 3 A |
| Load - Max Switching | 750 VA, 144 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 4.5 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | Telecom |
| Release Time | 1.5 ms |
| Switching Voltage | 48 VDC, 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.28 | |
| 20 | $ 1.20 | |||
| 40 | $ 1.02 | |||
| 100 | $ 0.96 | |||
| 260 | $ 0.86 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.75 | |||
| 5000 | $ 0.72 | |||
Description
General part information
PC323-12L Series
Telecom Relay DPDT (2 Form C) 12VDC Coil Through Hole
