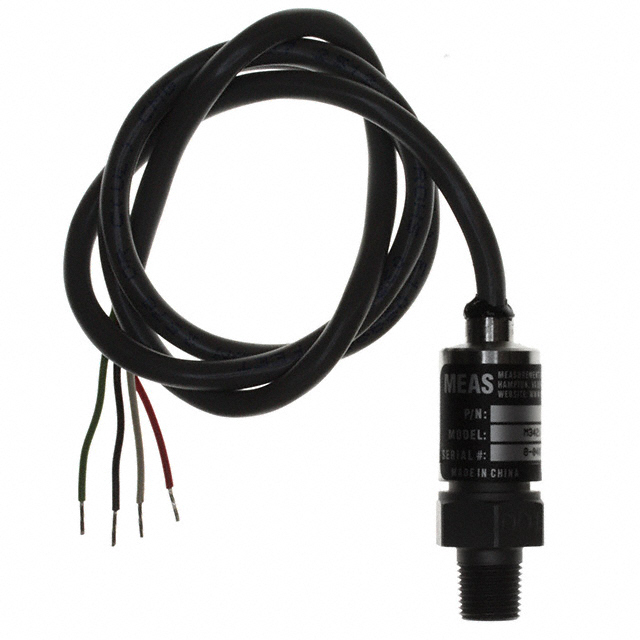

M3421-000006-100PG
ActiveTE Connectivity Measurement Specialties
SENSOR 100PSIG 1/8NPT 100MV 2'
Deep-Dive with AI
Search across all available documentation for this part.
M3421-000006-100PG
ActiveTE Connectivity Measurement Specialties
SENSOR 100PSIG 1/8NPT 100MV 2'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M3421-000006-100PG |
|---|---|
| Accuracy | 1 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 200 PSI |
| Maximum Pressure [Max] | 1378.95 kPa |
| Operating Pressure | 689.48 kPa |
| Operating Pressure | 100 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Output [Max] | 100 mV |
| Output [Min] | 0 mV |
| Output Type | Analog Voltage |
| Package / Case | Cylinder |
| Port Size | 0.125 " |
| Port Size | 3.18 mm |
| Port Size | Male |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Termination Style | Cable 2' |
| Voltage - Supply [Max] | 12 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 88.37 | |
| 10 | $ 86.44 | |||
Description
General part information
M3421 Series
SENSOR 100PSIG 1/8NPT 100MV 2'
Documents
Technical documentation and resources
No documents available
