A-CCS 020-Z-SM

Active

Assmann WSW Components

CONN SOCKET PLCC 20POS TIN

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN SOCKET PLCC 20POS TIN

Technical Specifications

Parameters and characteristics for this part

Specification	A-CCS 020-Z-SM

Contact Finish - Post	Tin
Contact Finish Thickness - Post	160 µin
Contact Finish Thickness - Post	4.06 µm
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	15 mOhm
Current Rating (Amps)	1 A
Features	Closed Frame
Housing Material	Polyamide (PA9T), Nylon 9T, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions or Pins (Grid) [custom]	5
Number of Positions or Pins (Grid) [custom]	20
Number of Positions or Pins (Grid) [custom]	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Pitch - Post	1.27 mm
Pitch - Post	0.05 in
Termination	Solder
Type	PLCC

Part	Mounting Type	Contact Finish - Post	Current Rating (Amps)	Contact Resistance	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Termination Post Length [x]	Termination Post Length [x]	Housing Material	Contact Material - Mating	Termination	Material Flammability Rating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Contact Material - Post	Features	Type	Number of Positions or Pins (Grid) [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Assmann WSW Components A-CCS 028-G-T	Through Hole	Gold	1 A	15 mOhm	0.05 in	1.27 mm	2.54 mm	0.1 in	-40 °C	105 ░C	Gold	3.35 mm	0.132 in	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Solder	UL94 V-0	4	28	7	Phosphor Bronze	Closed Frame	PLCC
Assmann WSW Components A-CCS 020-Z-SM	Surface Mount	Tin	1 A	15 mOhm	0.05 in	1.27 mm	1.27 mm	0.05 in	-40 °C	105 ░C				Polyamide (PA9T) Nylon 9T Glass Filled	Phosphor Bronze	Solder	UL94 V-0	4		5	Phosphor Bronze	Closed Frame	PLCC	20	160 µin	4.06 µm
Assmann WSW Components A-CCS 028-Z-SM	Surface Mount	Tin	1 A	15 mOhm	0.05 in	1.27 mm	1.27 mm	0.05 in	-40 °C	105 ░C				Polyamide (PA9T) Nylon 9T Glass Filled	Phosphor Bronze	Solder	UL94 V-0	4	28	7	Phosphor Bronze	Closed Frame	PLCC		160 µin	4.06 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

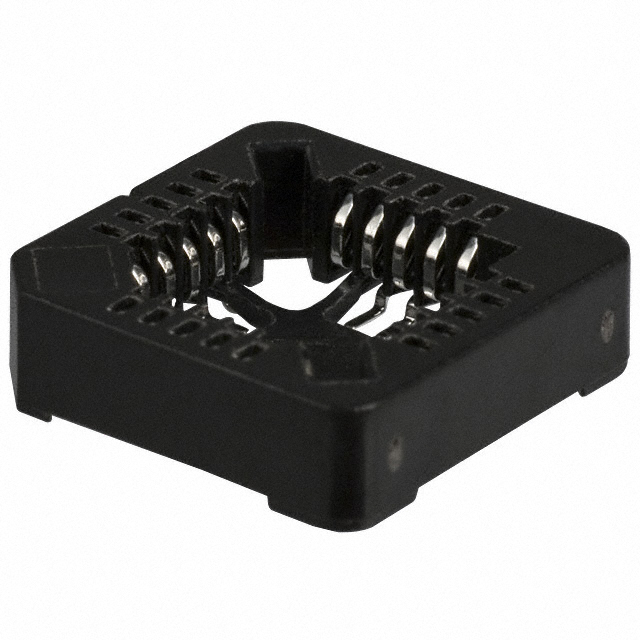

20 (4 x 5) Pos PLCC Socket Tin Surface Mount
