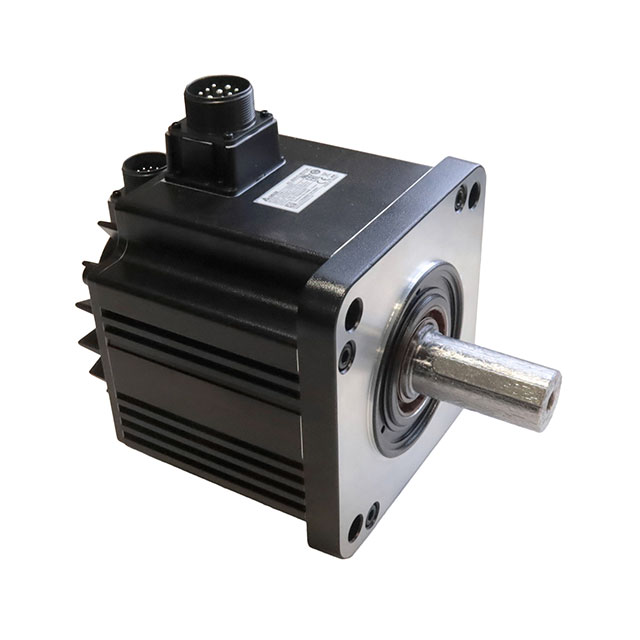

ECMA-L11830RS

Obsolete

Delta Electronics/Industrial Automation

SERVOMOTOR 1500 RPM 400V

Search across all available documentation for this part.

Obsolete

Delta Electronics/Industrial Automation

SERVOMOTOR 1500 RPM 400V

Technical Specifications

Parameters and characteristics for this part

Specification	ECMA-L11830RS

Approval Agency	CE, cURus
Diameter - Shaft [diameter]	1.378 in
Diameter - Shaft [diameter]	35 mm
Encoder Type	Incremental
Features	Key, Oil Seal
Function	Servomotor
Length - Shaft and Bearing [x]	79 mm
Length - Shaft and Bearing [x]	3.11 in
Mounting Hole Spacing	7.874 "
Mounting Hole Spacing	200 mm
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power - Rated	3 kW
RPM	1500 RPM
Size / Dimension [x]	180 mm
Size / Dimension [x]	7.087 "
Size / Dimension [y]	180 mm
Size / Dimension [y]	7.087 in
Termination Style	Cable with Connector
Torque - Max Momentary (oz-in / mNm)	8113 oz-in
Torque - Max Momentary (oz-in / mNm)	57290 mNm
Torque - Rated (oz-in / mNm)	2705 oz-in
Torque - Rated (oz-in / mNm)	19100 mNm
Type	AC Motor
Voltage - Rated	400 VAC

Part	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Mounting Hole Spacing	Mounting Hole Spacing	Features	RPM	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Termination Style	Encoder Type	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Function	Power - Rated	Type	Voltage - Rated	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Operating Temperature [Max]	Diameter - Shaft [diameter]	Torque - Rated (oz-in / mNm)
Delta Electronics/Industrial Automation ECMA-L11875S3	6761 oz-in	47740 mNm	180 mm	180 mm	7.087 in	7.087 "	CE cURus	7.874 "	200 mm	Brake Key Oil Seal	1500 RPM	119360 mNm	16903 oz-in	Cable with Connector	Incremental	4.449 in	113 mm	Servomotor	7.5 kW	AC Motor	400 VAC	1.654 in	42 mm	40 °C
Delta Electronics/Industrial Automation ECMA-L11855S3	4956 oz-in	35000 mNm	180 mm	180 mm	7.087 in	7.087 "	CE cURus	7.874 "	200 mm	Brake Key Oil Seal	1500 RPM	87530 mNm	12395 oz-in	Cable with Connector	Incremental	4.449 in	113 mm	Servomotor	5.5 kW	AC Motor	400 VAC	1.654 in	42 mm	40 °C
Delta Electronics/Industrial Automation ECMA-L11830RS		2705 oz-in	180 mm	180 mm	7.087 in	7.087 "	CE cURus	7.874 "	200 mm	Key Oil Seal	1500 RPM	57290 mNm	8113 oz-in	Cable with Connector	Incremental	3.11 in	79 mm	Servomotor	3 kW	AC Motor	400 VAC		1.378 in	40 °C	35 mm	19100 mNm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1356.59

General part information

AC Motor Servomotor 1500 RPM 3kW Incremental 400VAC
