A08SR08SR30K254A

Active

JST Sales America Inc.

JUMPER 08SR-3S - 08SR-3S 10"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 08SR-3S - 08SR-3S 10"

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Pitch - Connector	Pitch - Connector	Connector Type	Number of Rows	Length	Length	Contact Finish	Cable Termination	Length	Length [x]	Length [x]	Length [x]
JST Sales America Inc. A08SR08SR30K305A	8	0.039 "	1 mm	Socket to Socket Reversed	1	1 ft	304.8 mm	Tin	IDC
JST Sales America Inc. A08SR08SR30K51B	8	0.039 "	1 mm	Socket to Socket	1	0.167 '	50.8 mm	Tin	IDC	2 "
JST Sales America Inc. A08SR08SR30K203B	8	0.039 "	1 mm	Socket to Socket	1	0.667 ft	203.2 mm	Tin	IDC	8 in
JST Sales America Inc. A08SR08SR30K305B	8	0.039 "	1 mm	Socket to Socket	1	1 ft	304.8 mm	Tin	IDC
JST Sales America Inc. A08SR08SR30K102A	8	0.039 "	1 mm	Socket to Socket Reversed	1			Tin	IDC		4 "	0.333 ft	101.6 mm
JST Sales America Inc. A08SR08SR30K102B	8	0.039 "	1 mm	Socket to Socket	1			Tin	IDC		4 "	0.333 ft	101.6 mm
JST Sales America Inc. A08SR08SR30K254A	8	0.039 "	1 mm	Socket to Socket Reversed	1	0.833 ft	254 mm	Tin	IDC	10 in
JST Sales America Inc. A08SR08SR30K203A	8	0.039 "	1 mm	Socket to Socket Reversed	1	0.667 ft	203.2 mm	Tin	IDC	8 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

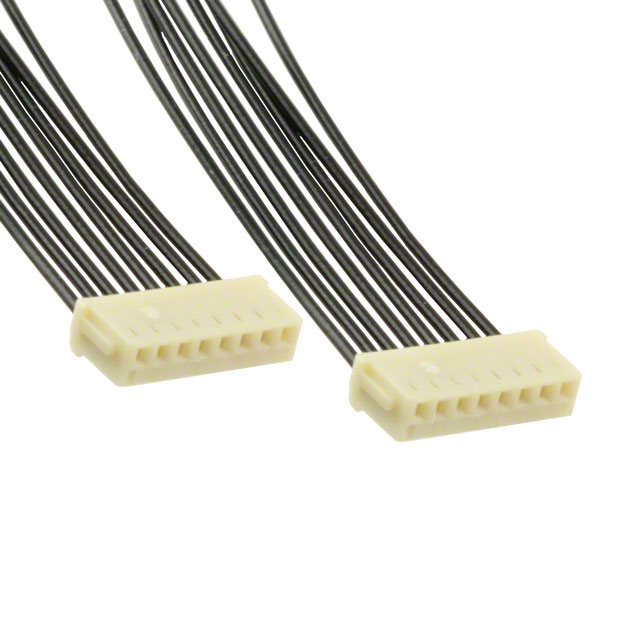

8 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.833' (254.00mm, 10.00")
