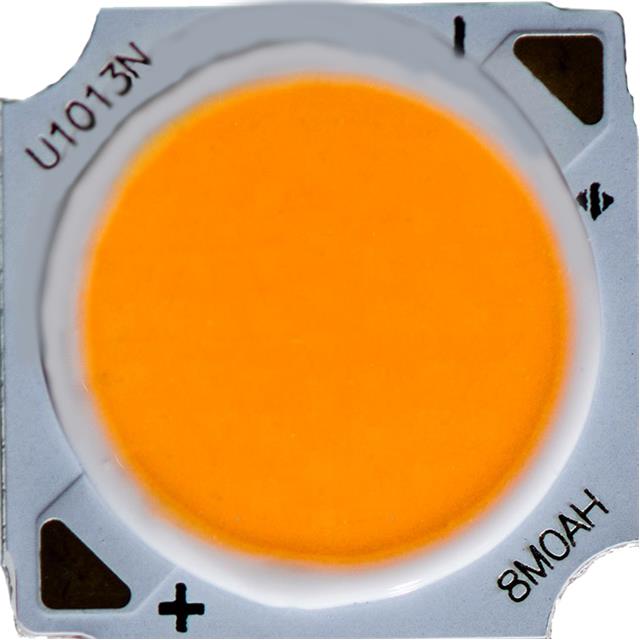

CMU1013-0000-000N0H0A35G

Active

Cree LED

XLAMP CMU LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMU1013-0000-000N0H0A35G

Active

Cree LED

XLAMP CMU LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMU1013-0000-000N0H0A35G

CCT (K)	3500 K
Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	960 mA
Current - Test	360 mA
Flux @ 85°C, Current - Test	1914 lm
Height - Seated (Max) [Max]	0.067 in
Height - Seated (Max) [Max]	1.7 mm
Lumens/Watt @ Current - Test	158 lm/W
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead
Size / Dimension [x]	13.5 mm
Size / Dimension [x]	0.531 in
Size / Dimension [y]	0.531 in
Size / Dimension [y]	13.5 mm
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.7 V

CMU1013 Series

...

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Mounting Type	Lumens/Watt @ Current - Test	Color	Viewing Angle	Current - Max [Max]	CCT (K)	CRI (Color Rendering Index)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Forward (Vf) (Typ)	Flux @ 85°C, Current - Test	Current - Test	Height [z]	Temperature - Test	Lens Type	Light Emitting Surface (LES) [diameter]	Configuration	Type	Luminous Flux @ Current/Temperature
Cree LED CMU1013-0000-000N0H0A35G	13.5 mm	0.531 in	0.531 in	13.5 mm	2-SMD No Lead	Surface Mount	158 lm/W	Warm White	115 °	960 mA	3500 K	80	0.067 in	1.7 mm	33.7 V	1914 lm	360 mA
Cree LED CMU1013-0000-000N0B0A40E	13.5 mm	0.531 in	0.531 in	13.5 mm	2-SMD No Lead	Surface Mount	176 lm/W	Neutral White	115 °	960 mA	4000 K	70	0.067 in	1.7 mm	33.7 V	2136 lm	360 mA
Cree LED CMU1013-R160-00PN0U0A27G								Warm White	115 °	960 mA	2700 K	90			33.7 V		360 mA	1.5 mm	85 °C	Flat	9.8 mm	Square	Chip On Board (COB)
Cree LED CMU1013-R160-000N0H0A50G							161 lm/W	Cool White	115 °	960 mA		80			33.7 V		360 mA	1.5 mm	85 °C	Flat	9.8 mm	Square	Chip On Board (COB)	1951 lm
Cree LED CMU1013-R160-000N0B0A30E							171 lm/W	Warm White	115 °	960 mA	3000 K	70			33.7 V		360 mA	1.5 mm	85 °C	Flat	9.8 mm	Square	Chip On Board (COB)	2080 lm
Cree LED CMU1013-0000-000N0U0A31Q	13.5 mm	0.531 in	0.531 in	13.5 mm	2-SMD No Lead	Surface Mount	129 lm/W	Warm White	115 °	960 mA	3100 K	90	0.067 in	1.7 mm	33.7 V	1562 lm	360 mA
Cree LED CMU1013-R160-00PN0U0A30U								Warm White	115 °	960 mA		90			33.7 V		360 mA	1.5 mm	85 °C	Flat	9.8 mm	Square	Chip On Board (COB)
Cree LED CMU1013-0000-000N0U0A27G	13.5 mm	0.531 in	0.531 in	13.5 mm	2-SMD No Lead	Surface Mount	129 lm/W	Warm White	115 °	960 mA	2700 K	90	0.067 in	1.7 mm	33.7 V	1571 lm	360 mA
Cree LED CMU1013-0000-000N0Z0A35H							123 lm/W	Warm White	115 °	960 mA	3500 K	95			33.7 V		360 mA	1.5 mm	85 °C	Flat	9.8 mm	Square	Chip On Board (COB)	1492 lm
Cree LED CMU1013-R160-00PN0Z0A40H								Neutral White	115 °	960 mA	4000 K	95			33.7 V		360 mA	1.5 mm	85 °C	Flat	9.8 mm	Square	Chip On Board (COB)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 2.41
Newark	Each	250	$ 2.14
		500	$ 2.08

Description

General part information

CMU1013 Series

LED Lighting XLamp® CMU1013 White, Warm 3500K 3-Step MacAdam Ellipse 33.7V 360mA 115° 2-SMD, No Lead

Documents

Technical documentation and resources
