341-053-524-104
ActiveEDAC Inc.

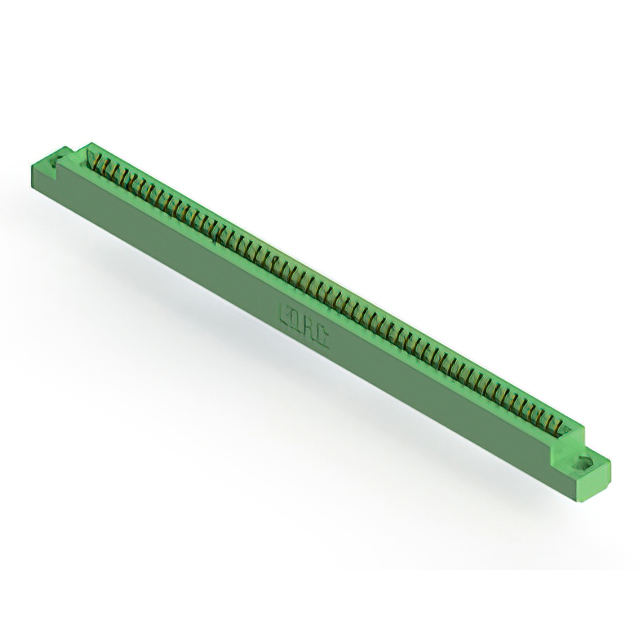

CARD EDGE CONNECTOR, 53 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
341-053-524-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 53 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, GREEN INSULATOR,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-053-524-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 53 |
| Number of Positions/Bay/Row [custom] | 53 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
341-053 Series
| Part | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Read Out | Material - Insulation | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Finish | Mounting Type | Contact Type | Termination | Card Type | Termination Rows | Pitch [x] | Pitch [x] | Contact Material | Color | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 53 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | Through Hole | Semi Bellows | Solder | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | Copper Alloy | Green | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female |
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 53 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Through Hole | Semi Bellows | Solder | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | Copper Alloy | Green | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female | ||
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 53 | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Gold | Through Hole | Semi Bellows | Solder | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | Copper Alloy | Green | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female |
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 53 | Flush Mount M3 Threaded Insert Top Opening | Gold | Through Hole | Semi Bellows | Solder | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | Copper Alloy | Green | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female | ||
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Single | Diallyl Phthalate (DAP) | 53 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | Through Hole | Semi Bellows | Solder Eyelet(s) | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | Copper Alloy | Green | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female |
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 53 | Gold | Through Hole | Semi Bellows | Solder | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | Copper Alloy | Green | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female | |||
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Single | Diallyl Phthalate (DAP) | 53 | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Gold | Through Hole | Semi Bellows | Solder Eyelet(s) | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | Copper Alloy | Green | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female |
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 53 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | Through Hole | Semi Bellows | Solder | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | Copper Alloy | Green | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female |
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 53 | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Gold | Through Hole | Semi Bellows | Solder | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | Copper Alloy | Green | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female |
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 53 | Flush Mount M3 Threaded Insert Top Opening | Gold | Through Hole | Semi Bellows | Solder | Non Specified - Single Edge | 1 | 2.54 mm | 0.1 in | Copper Alloy | Green | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
341-053 Series
53 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
