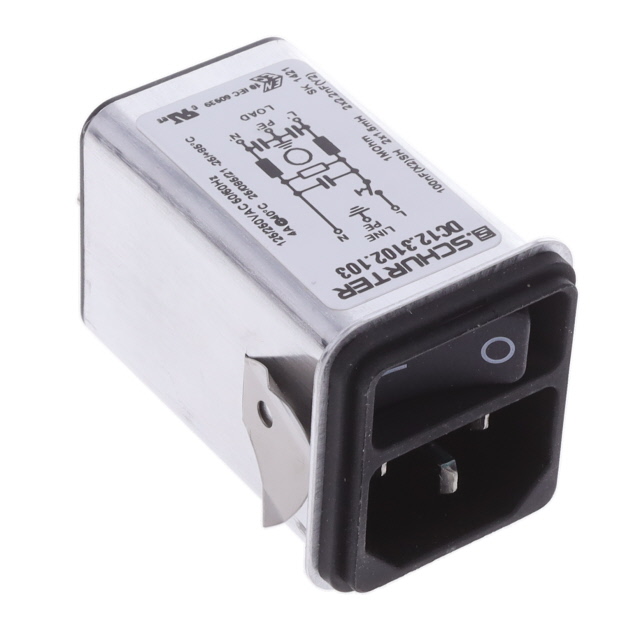

DC12.3102.103

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet PEM Filter Overview

DC12.3102.103

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet PEM Filter Overview

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC12.3102.103

Accomodates a Fuse	False
Approval Agency	CQC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	4 A
Features	V-Lock Notch, Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29.4 mm
Panel Cutout Dimensions [y]	33.1 mm
Panel Thickness [Max]	3 mm
Panel Thickness [Max]	0.118 in
Panel Thickness [Min]	0.039 in
Panel Thickness [Min]	1 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

DC12.3102 Series

Part	Current Rating - Filter	Mounting Type	Voltage Rating - Appliance Inlet	Termination	Termination	Termination	Features	Connector Type	Switch Features	Ingress Protection	Connector Style	Material Flammability Rating	Filter Type	Current Rating - Appliance Inlet	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]
SCHURTER Inc. DC12.3102.201	4 A	Flange Panel Mount	250 VAC	0.25 in	6.3 mm	Quick Connect	Shielded V-Lock Notch	Receptacle Male Blades - Module	Switch On-Off	IP40	IEC 320-C14	UL94 V-0	Filtered (EMI RFI) - Commercial	10 A	CQC cULus ENEC	30.4 mm	34.4 mm
SCHURTER Inc. DC12.3102.001	4 A	Flange Panel Mount	250 VAC	0.25 in	6.3 mm	Quick Connect	Shielded V-Lock Notch	Receptacle Male Blades - Module	Switch On-Off	IP40	IEC 320-C14	UL94 V-0	Filtered (EMI RFI) - Commercial	10 A	CQC cULus ENEC	29.1 mm	33.1 mm
SCHURTER Inc. DC12.3102.203	4 A	Flange Panel Mount	250 VAC	0.25 in	6.3 mm	Quick Connect	Shielded V-Lock Notch	Receptacle Male Blades - Module	Switch On-Off	IP40	IEC 320-C14	UL94 V-0	Filtered (EMI RFI) - Commercial	10 A	CQC cULus ENEC	30.4 mm	34.4 mm
SCHURTER Inc. DC12.3102.003	4 A	Flange Panel Mount	250 VAC	0.25 in	6.3 mm	Quick Connect	Shielded V-Lock Notch	Receptacle Male Blades - Module	Switch On-Off	IP40	IEC 320-C14	UL94 V-0	Filtered (EMI RFI) - Commercial	10 A	CQC cULus ENEC	29.1 mm	33.1 mm
SCHURTER Inc. DC12.3102.103	4 A	Panel Mount Snap-In	250 VAC	0.25 in	6.3 mm	Quick Connect	Shielded V-Lock Notch	Receptacle Male Blades - Module	Switch On-Off	IP40	IEC 320-C14	UL94 V-0	Filtered (EMI RFI) - Commercial	10 A	CQC cULus ENEC	29.4 mm	33.1 mm	3 mm	0.118 in	0.039 in	1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.85
		50	$ 21.00
		100	$ 19.06

Description

General part information

DC12.3102 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
