09360102701

Active

HARTING Technology Group

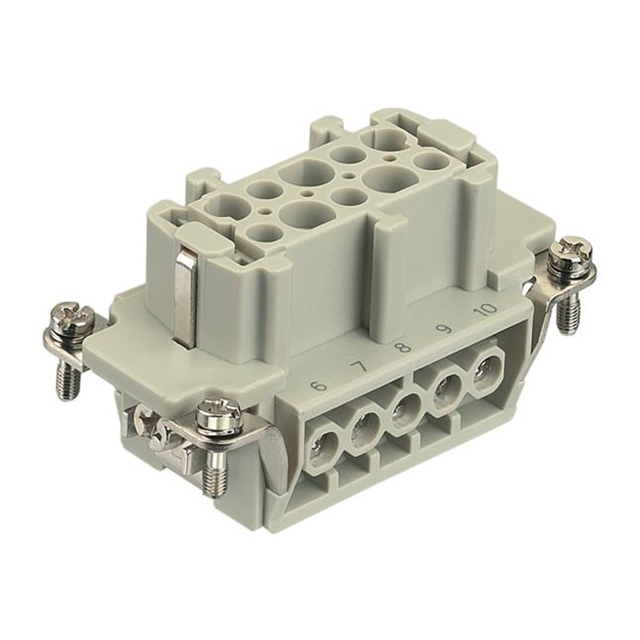

HAN 10E EX FEMALE SCREW TERMINAL INSERT (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 10E EX FEMALE SCREW TERMINAL INSERT (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Technical Specifications

Parameters and characteristics for this part

Specification	09360102701

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Type	Han® E
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	10+Ground
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	10B
Termination Style	Screw
Voltage Rating	90 V

Part	Size	Housing Material	Voltage Rating	Color	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Contact Material	Current Rating (Amps)	Number of Positions	Termination Style	Contact Finish	Contact Type	Connector Type
HARTING Technology Group 09360102701	10B	Polycarbonate (PC)	90 V	Gray	UL94 V-0	-20 C	40 °C	Female	Copper Alloy	16 A	10+Ground	Screw	Silver	Han® E
HARTING Technology Group 09360102702	10B	Polycarbonate (PC)	90 V	Gray	UL94 V-0	-20 C	40 °C	Female		16 A	10+Ground	Crimp		Han® E	Insert without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 10+Ground Position Screw
