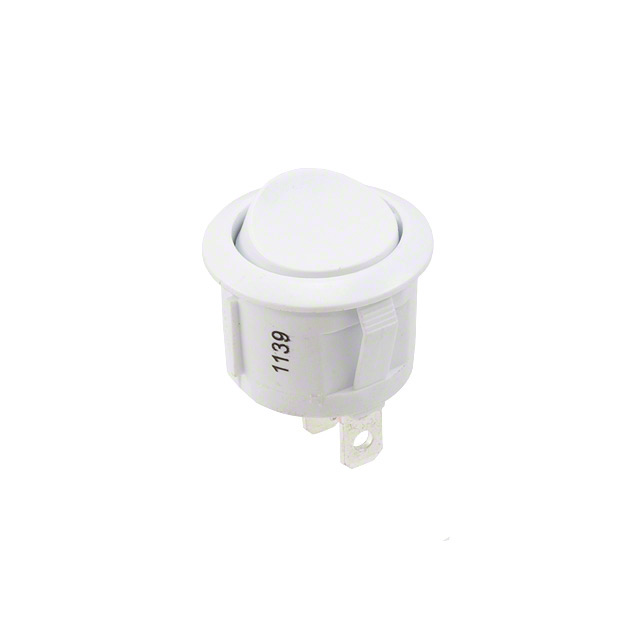

RRG38532200
ActiveE-Switch
SWITCH ROCKER SPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
RRG38532200
ActiveE-Switch
SWITCH ROCKER SPDT 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RRG38532200 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round |
| Approval Agency | UL, cUL |
| Circuit | SPDT |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 10 A |
| Electrical Life | 6000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-Off-On |
| Termination Style | Solder, Quick Connect |
| Termination Style | 4.7 mm, 0.187 in |
| Voltage Rating - AC | 125 V |
RRG3853 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Termination Style | Current Rating (Amps) | Color - Actuator/Cap | Switch Function | Voltage Rating - AC | Actuator Marking | Electrical Life | Circuit | Approval Agency | Actuator Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | -20 C | 105 ░C | Quick Connect Solder | 0.187 in 4.7 mm | 10 A | Black | On-Off-On | 125 V | No Marking | 6000 Cycles | SPDT | cUL UL | Round | Panel Mount Snap-In |
E-Switch | -20 C | 105 ░C | Quick Connect Solder | 0.187 in 4.7 mm | 10 A | White | On-Off-On | 125 V | No Marking | 6000 Cycles | SPDT | cUL UL | Round | Panel Mount Snap-In |
E-Switch | -20 C | 105 ░C | Quick Connect Solder | 0.187 in 4.7 mm | 10 A | On-Off-On | 125 V | 10000 Cycles | SPDT | cUL UL | Round | Panel Mount Snap-In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 0.69 | |
Description
General part information
RRG3853 Series
Rocker Switch SPDT 10A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
