0082226104

Obsolete

Molex

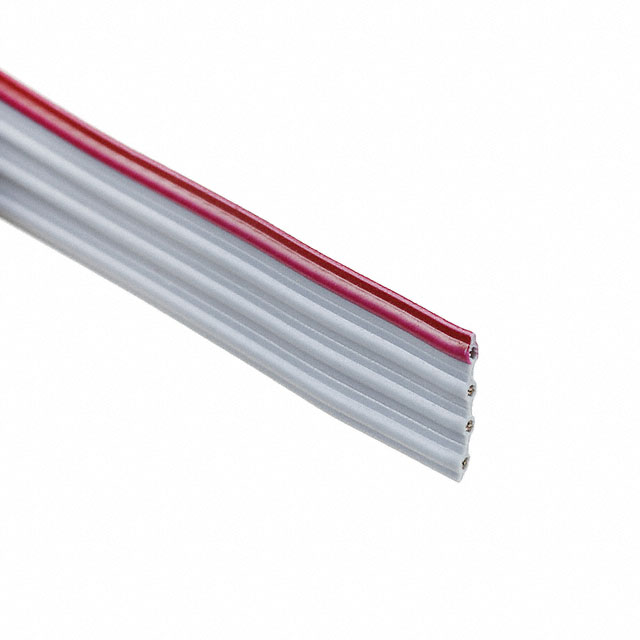

FLAT RIBBON CABLE POLYVINYL CHLORIDE 4CONDUCTORS 22AWG 300V 30.48M T/R

Deep-Dive with AI

Search across all available documentation for this part.

0082226104

Obsolete

Molex

FLAT RIBBON CABLE POLYVINYL CHLORIDE 4CONDUCTORS 22AWG 300V 30.48M T/R

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0082226104

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Ratings	UL Style 2651
Ribbon Width	0.3 in
Ribbon Width	7.62 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	22 AWG

008222 Series

Part	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Ribbon Thickness	Ribbon Thickness	Jacket (Insulation) Material	Shielding	Ribbon Width	Ribbon Width	Wire Gauge	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Cable Type	Ratings	First Conductor Mark	Pitch [x]	Pitch [x]	Jacket Color	Features	Insulation Resistance	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width
Molex 0082226036	100 ft	30.48 m	-20 C	105 ░C	300 V	1.37 mm	0.054 in	Poly-Vinyl Chloride (PVC)	Unshielded	3.6 in	91.44 mm	22 AWG	Copper Topcoat	30 AWG	7	36	Flat Cable	UL E61522	Black	2.54 mm	0.1 in	Gray
Molex 0082226102	100 ft	30.48 m	-20 C	105 ░C	300 V			Poly-Vinyl Chloride (PVC)	Unshielded	0.2 in	5.08 mm	22 AWG	Copper Tinned	36 AWG	7	2	Flat Cable	UL Style 2651	Red	2.54 mm	0.1 in	Gray	Zippable	10 MOhms
Molex 0082226104	100 ft	30.48 m	-20 C	105 ░C	300 V			Poly-Vinyl Chloride (PVC)	Unshielded	0.3 in	7.62 mm	22 AWG	Copper Tinned	36 AWG	7	4	Flat Cable	UL Style 2651	Red	2.54 mm	0.1 in	Gray	Zippable	10 MOhms
Molex 0082226014	100 ft	30.48 m	-20 C	105 ░C	300 V	1.37 mm	0.054 in	Poly-Vinyl Chloride (PVC)	Unshielded	1.4 in	35.55 mm	22 AWG	Copper Topcoat	30 AWG	7	14	Flat Cable	UL E61522	Black	2.54 mm	0.1 in	Gray
Molex 0082225807	100 ft	30.48 m	-20 C	105 ░C	300 V	1.37 mm	0.054 in	Poly-Vinyl Chloride (PVC)	Unshielded	1.092 "	27.74 mm	22 AWG	Copper Tinned	30 AWG	7	7	Flat Cable	UL E61522	Black	3.96 mm	0.156 in	Gray
Molex 0082225916	100 ft	30.48 m	-20 C	105 ░C	300 V	1.37 mm	0.054 in	Poly-Vinyl Chloride (PVC)	Unshielded	2.496 in	63.39 mm	22 AWG	Copper Topcoat	30 AWG	7	16	Flat Cable	UL E61522	Black	3.96 mm	0.156 in	Gray
Molex 0082226105	100 ft	30.48 m	-20 C	105 ░C	300 V			Poly-Vinyl Chloride (PVC)	Unshielded			22 AWG	Copper Tinned	30 AWG	7	5	Flat Cable	UL Style 2651	Red	2.54 mm	0.1 in	Gray	Zippable	10 MOhms	0.5 "	12.7 mm
Molex 0082226005	100 ft	30.48 m	-20 C	105 ░C	300 V	1.37 mm	0.054 in	Poly-Vinyl Chloride (PVC)	Unshielded			22 AWG	Copper Topcoat	30 AWG	7	5	Flat Cable	UL E61522	Black	2.54 mm	0.1 in	Gray			0.5 "	12.7 mm
Molex 0082226025	100 ft	30.48 m	-20 C	105 ░C	300 V	1.37 mm	0.054 in	Poly-Vinyl Chloride (PVC)	Unshielded	2.5 "	63.5 mm	22 AWG	Copper Topcoat	30 AWG	7	25	Flat Cable	UL E61522	Black	2.54 mm	0.1 in	Gray
Molex 0082226010	100 ft	30.48 m	-20 C	105 ░C	300 V	1.37 mm	0.054 in	Poly-Vinyl Chloride (PVC)	Unshielded		1 in	22 AWG	Copper Topcoat	30 AWG	7	10	Flat Cable	UL E61522	Black	2.54 mm	0.1 in	Gray					25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

008222 Series

Flat Ribbon Cable Gray 4 Conductors 0.100" (2.54mm) Flat Cable 100.0' (30.48m)

Documents

Technical documentation and resources

No documents available
