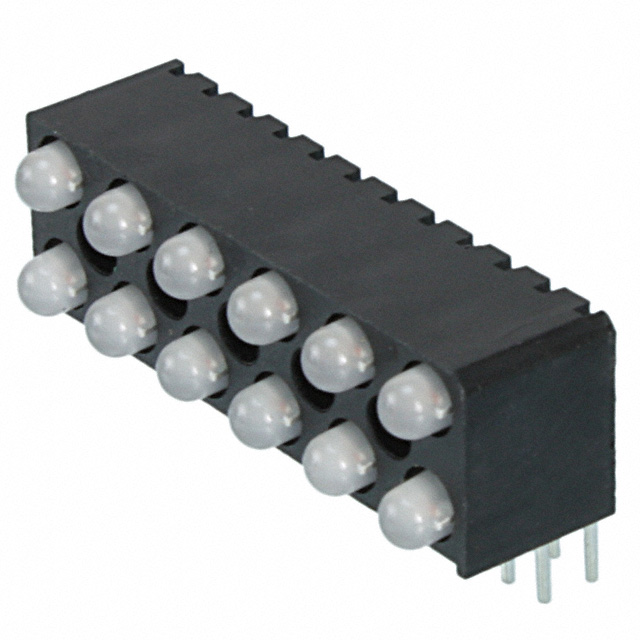

5530744306F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN/YELLOW RA

Deep-Dive with AI

Search across all available documentation for this part.

Documents553-yyyy-306 Drawing Datasheet

5530744306F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN/YELLOW RA

Deep-Dive with AI

Documents553-yyyy-306 Drawing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5530744306F

Color	Green, Yellow (x 2)
Configuration	2 High
Current	10 mA
Lens Size [diameter]	3 mm
Lens Style	Round with Domed Top
Lens Type	Diffused
Millicandela Rating	4.3 mcd, 6.3 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	80 °
Voltage Rating	2.1 V
Wavelength - Peak	565 nm, 585 nm

5530744 Series

Part	Lens Style	Lens Size	Lens Size	Viewing Angle	Mounting Type	Color	Wavelength - Peak	Lens Type	Voltage Rating	Millicandela Rating	Configuration	Lens Size [diameter]	Current	Configuration [x]	Configuration [z]	Configuration [y]
DIALIGHT 5530744F	Round with Domed Top	3 mm	T-1	80 °	Through Hole Right Angle	Green Yellow (x 2)	565 nm 585 nm	Diffused	2.1 V	4.3 mcd 6.3 mcd	2 High
DIALIGHT 5530744850F	Round with Domed Top			80 °	Through Hole Right Angle	Green Yellow (x 2)	565 nm 585 nm	Diffused	2.1 V	4.3 mcd 6.3 mcd	2 High	3 mm	10 mA
DIALIGHT 5530744210F	Round with Domed Top			80 °	Through Hole Right Angle	Green Yellow (x 2)	565 nm 585 nm	Diffused	2.1 V	4.3 mcd 6.3 mcd	2 High	3 mm	10 mA
DIALIGHT 5530744205F	Round with Domed Top			80 °	Through Hole Right Angle	Green Yellow (x 2)	565 nm 585 nm		2.1 V 2.1 V	4.3 mcd 6.3 mcd		3 mm		5	2
DIALIGHT 5530744200F	Round with Domed Top			80 °	Through Hole Right Angle	Green Yellow (x 2)	565 nm 585 nm	Diffused	2.1 V	4.3 mcd 6.3 mcd	2 High	3 mm	10 mA
DIALIGHT 5530744010F	Round with Domed Top			80 °	Through Hole Right Angle	Green Yellow (x 2)	565 nm 585 nm	Diffused	2.1 V	4.3 mcd 6.3 mcd	2 High	3 mm	10 mA
DIALIGHT 5530744400F	Round with Domed Top			80 °	Through Hole Right Angle	Green Yellow (x 2)	565 nm 585 nm	Diffused	2.1 V	4.3 mcd 6.3 mcd	2 High	3 mm	10 mA
DIALIGHT 5530744306F	Round with Domed Top			80 °	Through Hole Right Angle	Green Yellow (x 2)	565 nm 585 nm	Diffused	2.1 V	4.3 mcd 6.3 mcd	2 High	3 mm	10 mA
DIALIGHT 5530744300F				80 °	Through Hole Right Angle	Green Yellow (x 2)	565 nm 585 nm	Clear	2.1 V	4.3 mcd 6.3 mcd	2 High
DIALIGHT 5530744004F	Round with Domed Top			80 °	Through Hole Right Angle	Green Yellow	565 nm 585 nm	Diffused	2.1 V	4.3 mcd 6.3 mcd		3 mm	10 mA		2	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	171	$ 4.42

Description

General part information

5530744 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green, Yellow (x 2) Diffused 2.1V 10mA Round with Domed Top 3.00mm Dia Through Hole, Right Angle
