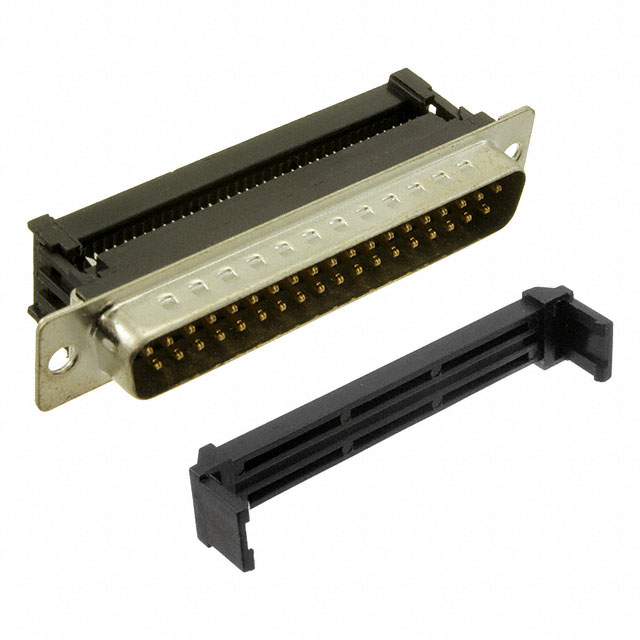

A-DSF 37 LPIII/Z

Active

Assmann WSW Components

CONN D-SUB PLUG 37POS IDC

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB PLUG 37POS IDC

Technical Specifications

Parameters and characteristics for this part

Specification	A-DSF 37 LPIII/Z

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Strain Relief, Grounding Indents, Feed Through
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC

Part	Connector Type	Contact Finish	Mounting Type	Number of Rows	Contact Finish Thickness	Termination	Shell Size, Connector Layout	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Color	Connector Style	Dielectric Material	Number of Positions	Voltage Rating	Flange Feature	Contact Material	Features	Material Flammability Rating
Assmann WSW Components A-DSF 37 LPIII/Z	Male Pins Plug	Gold	Free Hanging (In-Line)	2	Flash	IDC Ribbon Cable	4 (DC C)	3 A	105 ░C	-55 °C	Signal	Black	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	37	250 VDC	Housing/Shell (Unthreaded)	Copper Alloy	Feed Through Grounding Indents Strain Relief	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position D-Sub Plug, Male Pins Connector
