CLL4448 BK PBFREE

Active

Central Semiconductor Corp

DIODE GEN PURP 75V 250MA SOD80

Search across all available documentation for this part.

Active

Central Semiconductor Corp

DIODE GEN PURP 75V 250MA SOD80

Technical Specifications

Parameters and characteristics for this part

Specification	CLL4448 BK PBFREE

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	250 mA
Current - Reverse Leakage @ Vr	25 nA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C

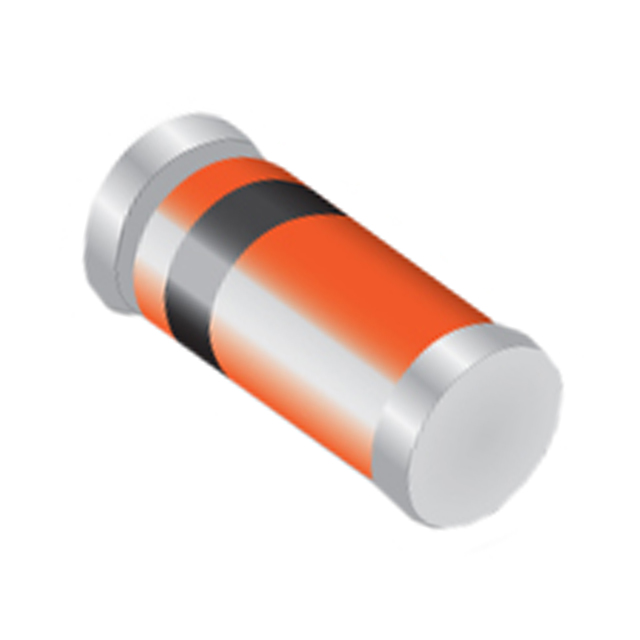

Package / Case	MINI-MELF, DO-213AC, SOD-80
Reverse Recovery Time (trr)	4 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOD-80
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Speed	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F
Central Semiconductor Corp CLL4448 BK PBFREE	DO-213AC MINI-MELF SOD-80	200 C	-65 C	Standard	SOD-80	1 V	Surface Mount	75 V	4 ns	200 mA 500 ns	250 mA	25 nA	4 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	16000	$ 0.06

General part information

Diode 75 V 250mA Surface Mount SOD-80
