0196020006

Active

Molex

CONN QC RCPT/TAB 10-12AWG 0.250

Search across all available documentation for this part.

Active

Molex

CONN QC RCPT/TAB 10-12AWG 0.250

Technical Specifications

Parameters and characteristics for this part

Specification	0196020006

Color	Yellow
Contact Finish	Tin
Contact Material	Brass
Gender	Female, Male
Insulation	Fully Insulated
Insulation Diameter [diameter]	0.231 in
Insulation Diameter [diameter]	5.87 mm
Length - Overall [x]	1.02 in
Length - Overall [x]	25.91 mm
Mounting Type	Free Hanging (In-Line)
Tab Length	7.87 mm
Tab Length	0.31 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Stacked
Termination	Crimp
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Color	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Insulation	Tab Width	Tab Width	Tab Length	Tab Length	Tab Thickness	Tab Thickness	Contact Finish	Gender	Contact Material	Mounting Type	Termination	Insulation Diameter	Insulation Diameter
Molex 0196020004	2.95 mm	0.116 in	Red	0.88 in	22.35 mm	22 AWG	17.5 AWG	Stacked	Fully Insulated	6.35 mm	0.25 in	7.87 mm	0.31 in	0.032 in	0.81 mm	Tin	Female Male	Brass	Free Hanging (In-Line)	Crimp
Molex 0196020010	2.95 mm	0.116 in	Red	0.88 in	22.35 mm	22 AWG	17.5 AWG	Stacked	Fully Insulated	6.35 mm	0.25 in	7.87 mm	0.31 in	0.032 in	0.81 mm	Tin	Female Male	Brass	Free Hanging (In-Line)	Crimp
Molex 0196020006	5.87 mm	0.231 in	Yellow	1.02 in	25.91 mm	12 AWG	10 AWG	Stacked	Fully Insulated	6.35 mm	0.25 in	7.87 mm	0.31 in	0.032 in	0.81 mm	Tin	Female Male	Brass	Free Hanging (In-Line)	Crimp
Molex 0196020005			Blue	0.88 in	22.35 mm			Stacked	Fully Insulated	6.35 mm	0.25 in	7.87 mm	0.31 in	0.032 in	0.81 mm	Tin	Female Male	Brass	Free Hanging (In-Line)	Crimp	0.139 in	3.53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4000	$ 1.05

General part information

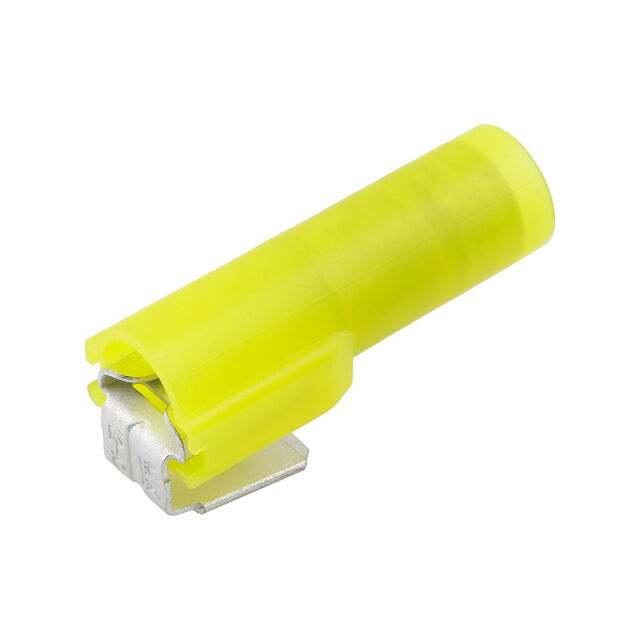

0.250" (6.35mm) Quick Connect Female and Male 10-12 AWG Crimp Connector Fully Insulated
