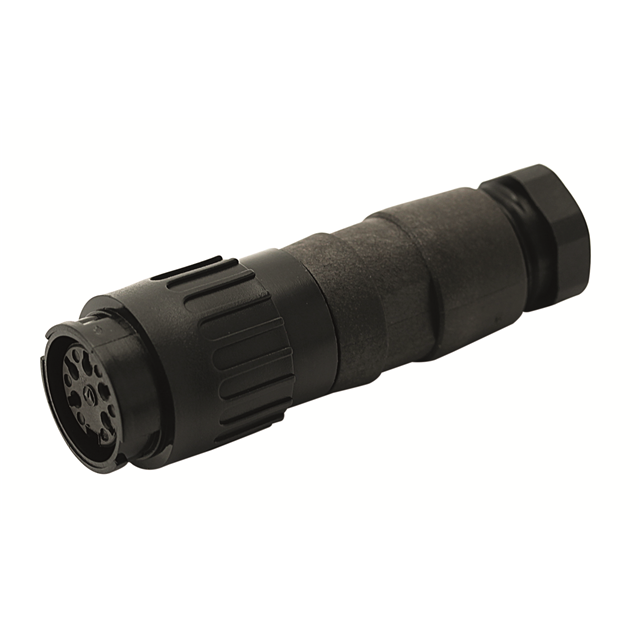

T 3528 528

Active

Amphenol Sine Systems Corp

FEMALE CABLE CONNECTOR WITH INTE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

FEMALE CABLE CONNECTOR WITH INTE

Technical Specifications

Parameters and characteristics for this part

Specification	T 3528 528

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating (Amps)	7 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-8
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Shell Size - Insert	Number of Positions	Mounting Type	Note	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Material Flammability Rating	Housing Color	Shielding	Fastening Type	Contact Type	Connector Type	Orientation	Contact Size	Type	Shell Finish	Contact Shape	Features	Insert Material	Shell Material	Color	Voltage Rating	Current Rating (Amps)	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Applications	Primary Material	Contact Finish - Mating	Cable Opening [diameter]	Cable Opening [diameter]
Amphenol Sine Systems Corp T 3528 554	M16-8	8	Free Hanging (In-Line)	Contacts Not Included	100 °C	-40 °C	IP40	UL94 V-0	Black Silver	Shielded	Bayonet Lock	Crimp	Plug Housing	Keyed	1.5 mm	For Female Sockets	Nickel	Circular	Backshell Cable Clamp Coupling Nut	Thermoplastic	Die Cast
Amphenol Sine Systems Corp T 3528 528	M16-8	8	Free Hanging (In-Line)		100 °C	-40 °C	IP40	UL94 V-0		Unshielded	Bayonet Lock		Female Sockets Plug	Keyed			Nickel		Backshell Cable Clamp	Thermoplastic	Zinc Die Cast	Black	250 VDC	7 A	8 mm	6 mm	0.315 in	0.236 in	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Metal	Gold
Amphenol Sine Systems Corp T 3528 504	M16-8	8	Free Hanging (In-Line)		100 °C	-40 °C	IP40	UL94 V-0		Unshielded	Bayonet Lock		Female Sockets Plug	Keyed			Nickel		Backshell Cable Clamp	Thermoplastic	Zinc Die Cast	Black	250 VDC	7 A					Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Metal	Silver	4 mm 6 mm	0.157 in 0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 14.38

General part information

8 Position Circular Connector Plug, Female Sockets Solder Cup
