MTM231232LBF
ObsoletePanasonic Industrial Automation Sales
SMALL SIGNAL FIELD-EFFECT TRANSISTOR, 3A I(D), 20V, 1-ELEMENT, P-CHANNEL, SILICON, METAL-OXIDE SEMICONDUCTOR FET, HALOGEN FREE AND ROHS COMPLIANT, SMINI3-G1-B, SC-70, 3 PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MTM231232LBF
ObsoletePanasonic Industrial Automation Sales
SMALL SIGNAL FIELD-EFFECT TRANSISTOR, 3A I(D), 20V, 1-ELEMENT, P-CHANNEL, SILICON, METAL-OXIDE SEMICONDUCTOR FET, HALOGEN FREE AND ROHS COMPLIANT, SMINI3-G1-B, SC-70, 3 PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MTM231232LBF |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 3 A |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5 V, 2.5 V |
| FET Type | P-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 1000 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |

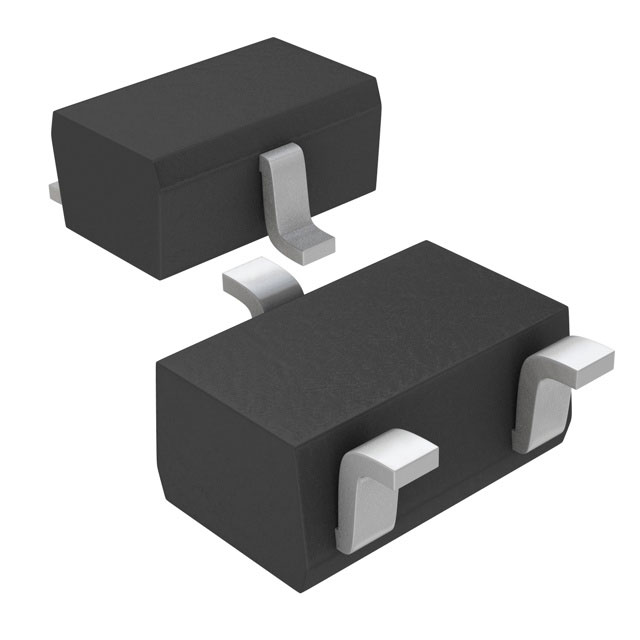

| Package / Case | SC-70, SOT-323 |
| Power Dissipation (Max) [Max] | 500 mW |
| Rds On (Max) @ Id, Vgs | 55 mOhm |
| Supplier Device Package | SMini3-G1-B |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 10 V |
| Vgs(th) (Max) @ Id | 1.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MTM231232 Series
P-Channel 20 V 3A (Ta) 500mW (Ta) Surface Mount SMini3-G1-B
